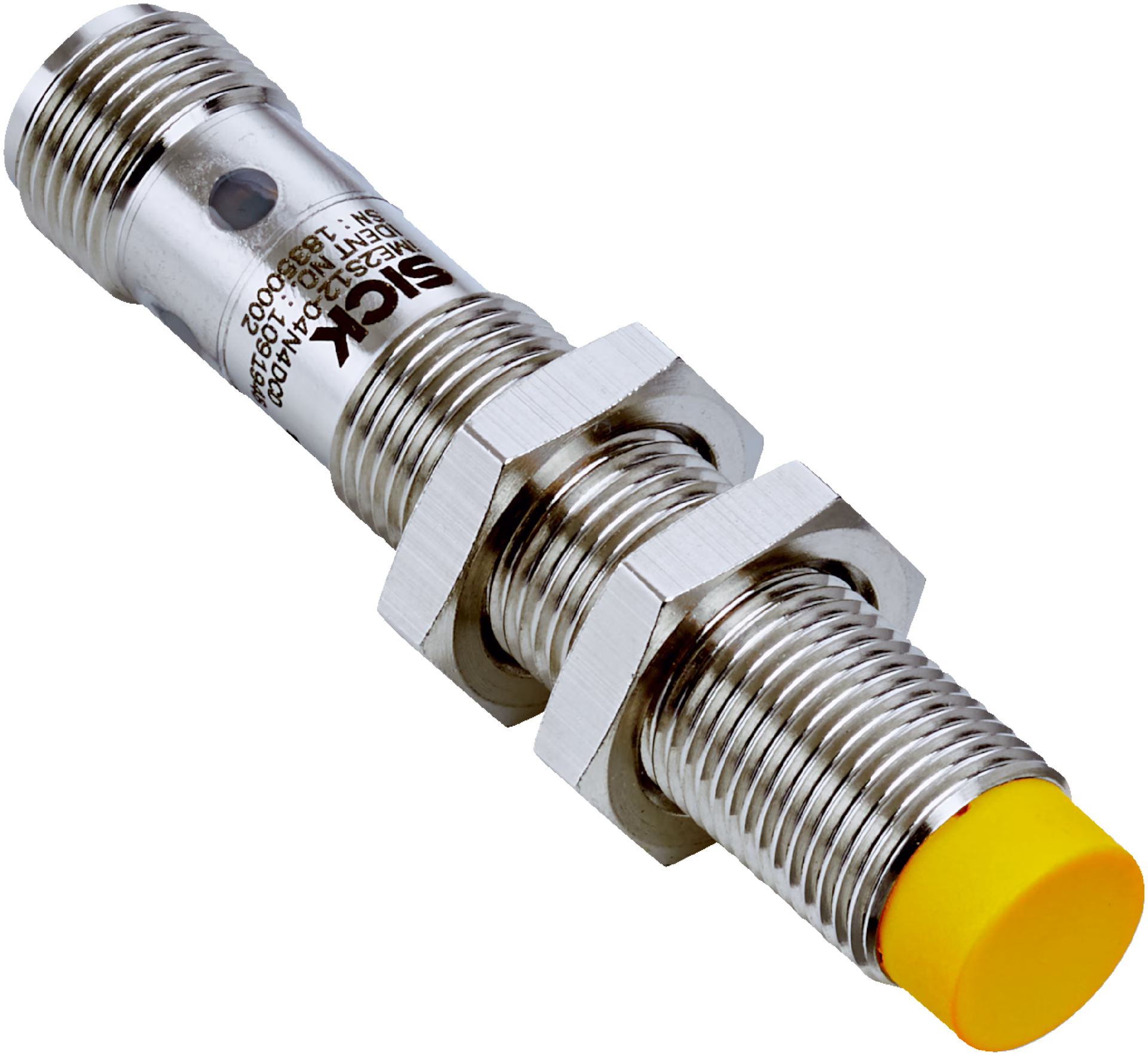

IME2S12-04N4DC0
Product ID:54791
Updated: 2026/7/7
Key Features
- 1Inductive Sensor Principle: Ensures reliable and precise sensing with minimal contact.
- 2High Safety Integrity: Meets SIL 2 (IEC 61508) and Category 2 (ISO 13849-1) standards for critical safety applications.
- 3Compact Design: M12 housing diameter for easy integration into various industrial settings.
- 4Wide Sensing Range: 4mm sensing range with 3.2mm safe switch on distance and 6mm safe switch off distance.
- 5Durable Construction: Nickel-plated brass housing material and VISTAL® sensor surface for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Sensor principle | Inductive | Number of safe outputs | 2 |
| Housing diameter | M12 | Sensing range Sn | 4 mm |
| Safe switch on distance Sao | 3.2 mm | Safe switch off distance Sar | 6 mm |
| Active sensor surfaces | 1 | Actuation frequency | ≤ 100 Hz |
| Items supplied | Including mounting nuts, brass, nickel-plated (2x) | Safe series connections | With Flexi Loop (with diagnostics) |
| Connection type_Coupling nut material | Nickel-plated brass | IO-Link Safety_WCDT | ≤ 1 ms |
| IO-Link Safety_OFDT | ≤ 20 ms | Display elements_Diagnostics indicator | ✔ |
| Display elements_Status display | ✔ | Protection class | III (IEC 61140) |
| Rated insulation voltage Ui | 28.8 V | Rated impulse withstand voltage Uimp | 1,500 V |
| Supply voltage Vs | 24 V DC (19.2 V DC ... 28.8 V DC) | Power consumption | ≤ 20 mA |
| Type of output | Self-monitoring semiconductor outputs (OSSDs) | Response time | ≤ 1 ms |
| Release time | ≤ 1 ms | Risk time | ≤ 20 ms |
| Switch-on time | 1 s | Design | Cylindrical |
| Housing diameter | M12 | Housing length | 65 mm |
| Thread length | 36.9 mm | Material_Housing | Nickel-plated brass |
| Material_Sensor surface | VISTAL® | Installation type | Non-flush |
Specifications may be subject to change without notice
