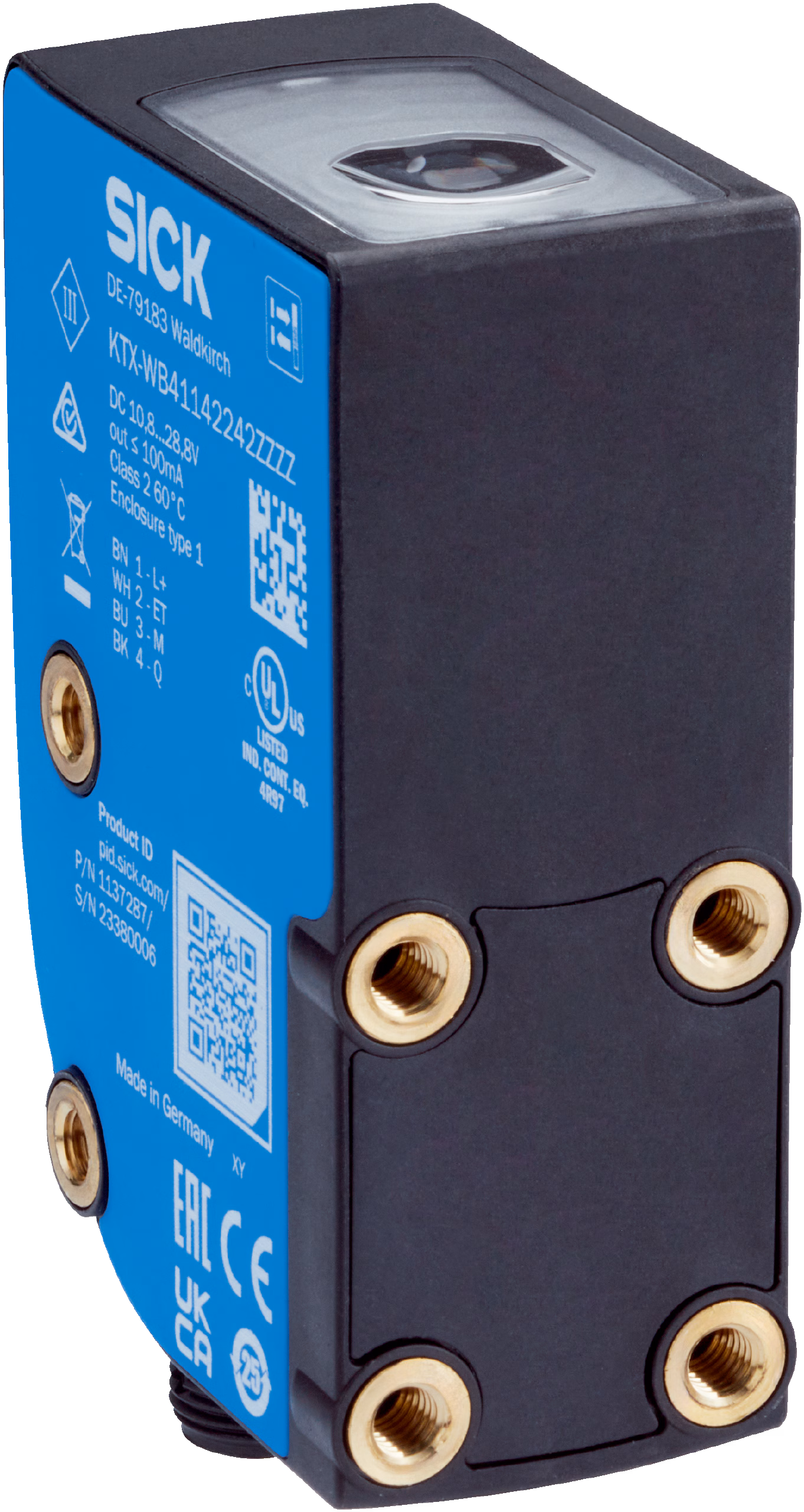

KTX-WN41142242ZZZZ
Product ID:54409
Updated: 2026/7/7
Key Features
- 1Long sensing distance up to 13 mm for precise detection.
- 2Robust housing design for durability and reliability.
- 3NPN output for easy integration into various control systems.
- 4Compact dimensions for easy installation in tight spaces.
- 5High switching frequency of 50 kHz for fast response times.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Special applications | Standard | Device type | Easy Teach |
| Dimensions (W x H x D) | 30 mm x 53 mm x 78.5 mm | Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 3 mm | Housing design | Large |
| Light source | LED, RGB | Wave length | 470 nm, 525 nm, 625 nm |
| Light emission | Short device side | Light spot size | 0.9 mm x 3.8 mm |
| Light spot direction | Vertical | Receiving filters | None |
| Teach-in mode | 2-point teach-in | Output function | Light/dark switching |
| Delay time | Adjustable | Delivery status | 2-point teach-in |
| Parameter presettings | None | Setting the key lock | Standard |
| Supply voltage | 10.8 V DC ... 28.8 V DC | Ripple | ≤ 5 V |
| Current consumption | < 100 mA | Switching frequency | 25 kHz |
| Response time | 20 µs | Jitter | 10 µs |
| Switching output | NPN | Switching output (voltage) | NPN: HIGH = V#!#/ LOW ≤ 3 V |
| Output current Imax. | 100 mA | Retention time (ET) | 35 ms, non-volatile memory |
| Connection type | Male connector M12, 4-pin | Protection class | III |
| Circuit protection | UVconnections, reverse polarity protected#!#Output Q short-circuit protected#!#Interference pulse suppression | Enclosure rating | IP67 |
| Weight | 94 g | Housing material | VISTAL® |
| Optics material | COP |
Specifications may be subject to change without notice
