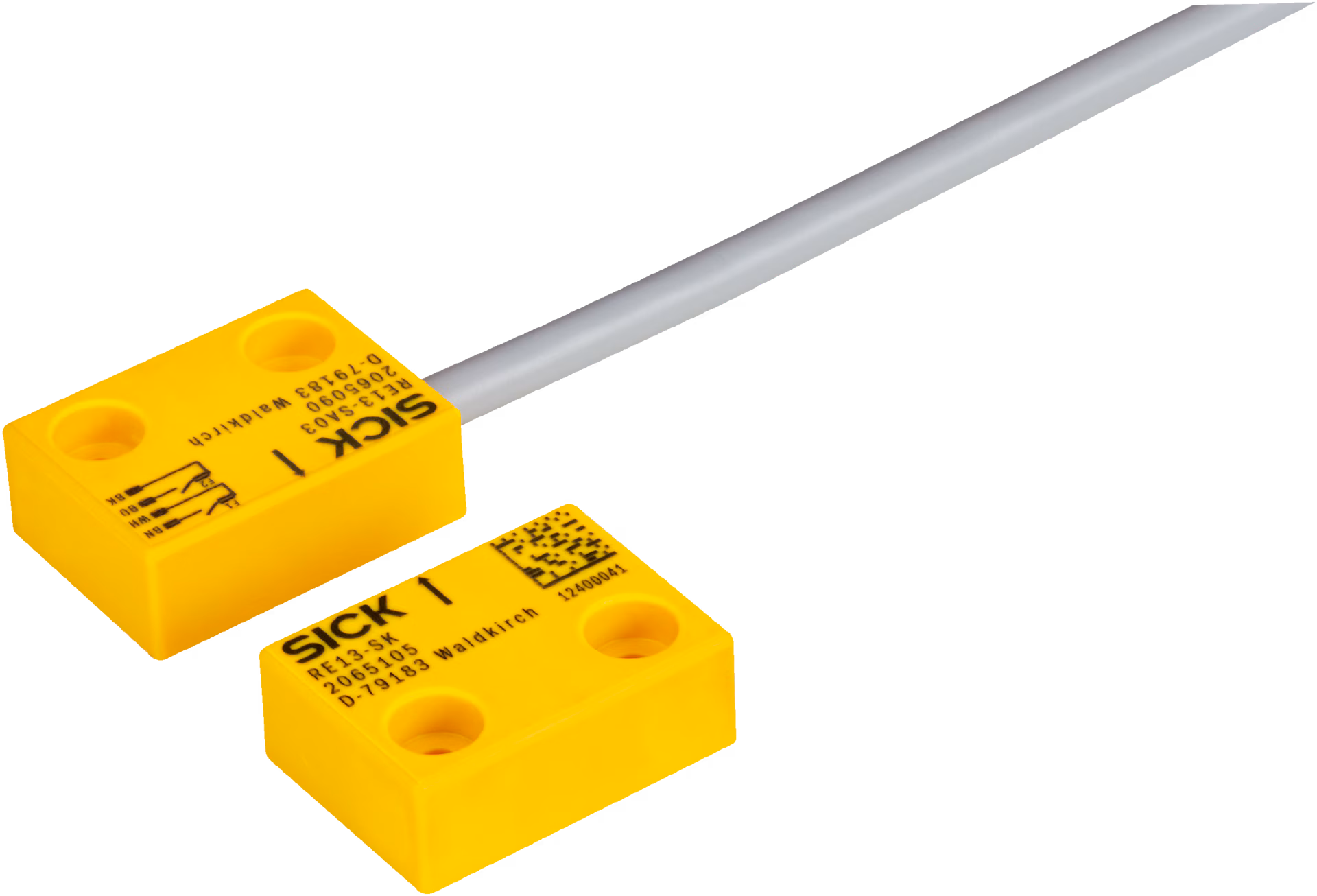

RE13-SA03
Product ID:54376
Updated: 2026/7/7
Key Features
- 1Designed for 2 x 10^7 switching cycles with small load.
- 2Ensures protection against dust and water, suitable for harsh environments.
- 3Built with durable VISTAL housing and copper conductors for extended lifespan.
- 4Compact rectangular design with 3m cable length and M8 plug connector.
- 5Type 4 (EN ISO 14119) certification and low coding level for enhanced safety protocols.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| System part | Sensor with actuator | Sensor principle | Magnetic |
| Number of N/O contacts | 2 | Number of N/C contacts | 0 |
| Number of signaling contacts | 0 | Safe switch on distance Sao | 7 mm |
| Safe switch off distance Sar | 20 mm | Active sensor surfaces | 1 |
| Actuation directions | 3 | Safe series connections | None, only individual wiring (with diagnostics) |
| Connection type_Length of cable | 3 m | Connection type_Cable diameter | 5.8 mm |
| Connection type_Conductor cross section | 0.25 mm² | Connection type_Bend radius (with fixed installation) | > 12 x cable diameter |
| Connection type_Bend radius (with moving cable) | > 15 x cable diameter | Connection type_Cable material | PVC |
| Connection type_Conductor material | Copper | Type of output | Reed contacts |
| Switching voltage | ≤ 30 V DC | Switching current | ≤ 100 mA |
| Design | Rectangular | Dimensions (W x H x D) | 26 mm x 36 mm x 13 mm |
| Weight | 0.2 kg | Housing material | VISTAL® |
Specifications may be subject to change without notice
