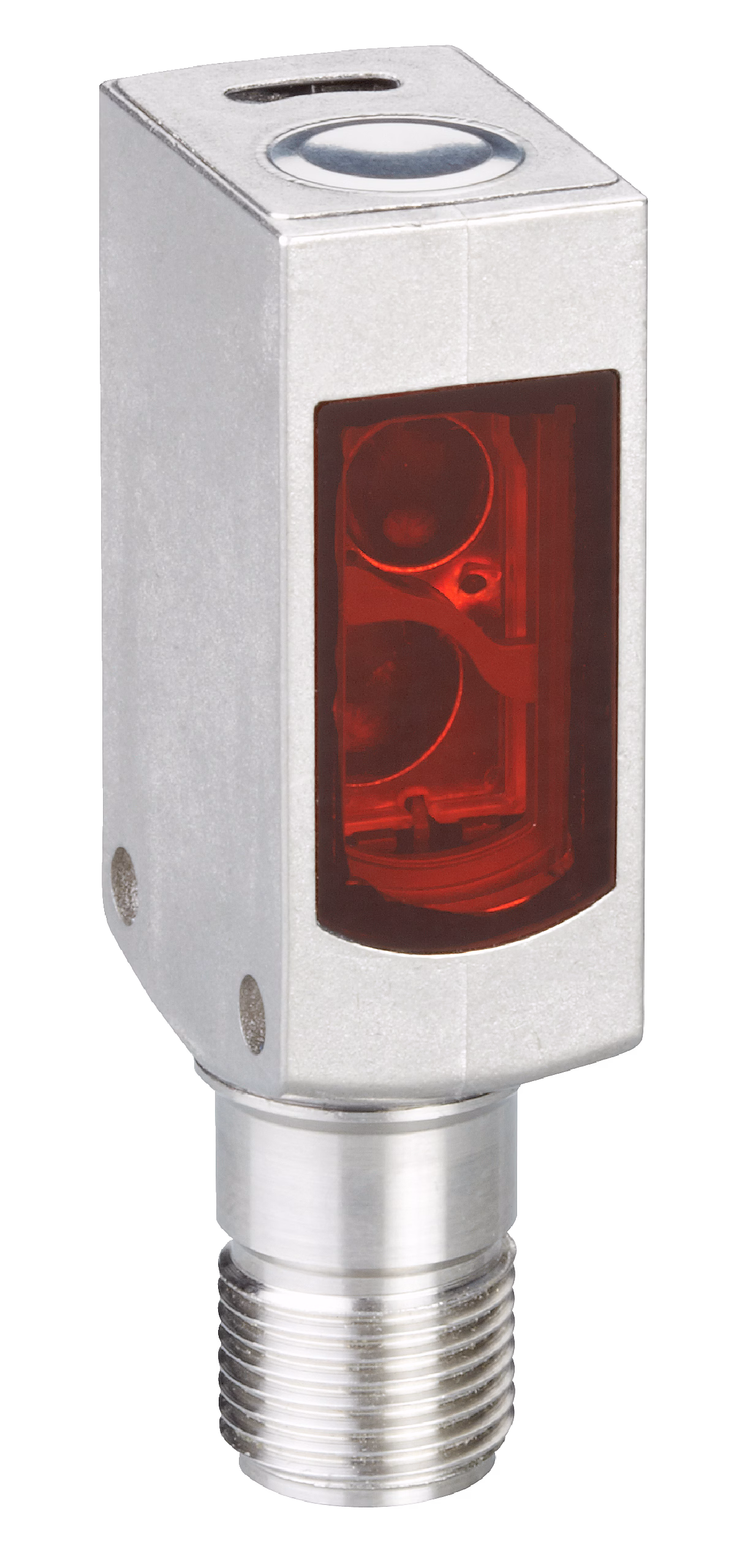

WLG4S-3F2434V
Product ID:53693
Updated: 2026/7/7
Key Features
- 1Advanced Detection Technology: Equipped with MultiPulse and LineSpot technologies for precise object detection.
- 2High Reliability: Features a rugged design with IP66/IP67/IP69K enclosure ratings for harsh environments.
- 3Versatile Applications: Suitable for various applications including hygienic and washdown zones, explosive areas, and high-speed object detection.
- 4Easy Installation: Includes a teach-in button for quick and convenient commissioning.
- 5Durable Construction: Made with stainless steel housing for chemical resistance and durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric retro-reflective sensor | Functional principle detail | Without reflector minimum distance (autocollimation/coaxial optics) |
| Sensing range max. | 0 m ... 5 m | Sensing range | 0 m ... 3 m |
| Polarisation filters | Yes | Emitted beam_Light source | PinPoint LED2) |
| Emitted beam_Type of light | Visible red light | Emitted beam_Light spot size (distance) | Ø 45 mm (1.5 m) |
| Key LED figures_Wave length | 650 nm | Adjustment | Cable, Single teach-in button |
| Special applications | Hygienic and washdown zones, Detecting transparent objects | Housing design | Washdown |
| AutoAdapt | ✔ | Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 V | Current consumption | 30 mA |
| Protection class | III | Digital output_Type | PNP |
| Digital output_Switching mode | Dark switching | Digital output_Output current Imax. | ≤ 100 mA |
| Digital output_Response time | < 0.5 ms4) | Digital output_Switching frequency | 1,000 Hz5) |
| Attenuation along light beam | > 8 % | Circuit protection | A, B, C |
| Housing | Rectangular | Design detail | Slim |
| Dimensions (W x H x D) | 15.25 mm x 49.2 mm x 22.2 mm | Connection | Male connector M12, 4-pin |
| Material_Housing | Stainless steel, Stainless steel V4A (1.4404, 316L) | Material_Front screen | Plastic, PMMA |
| Weight | 45 g |
Specifications may be subject to change without notice
