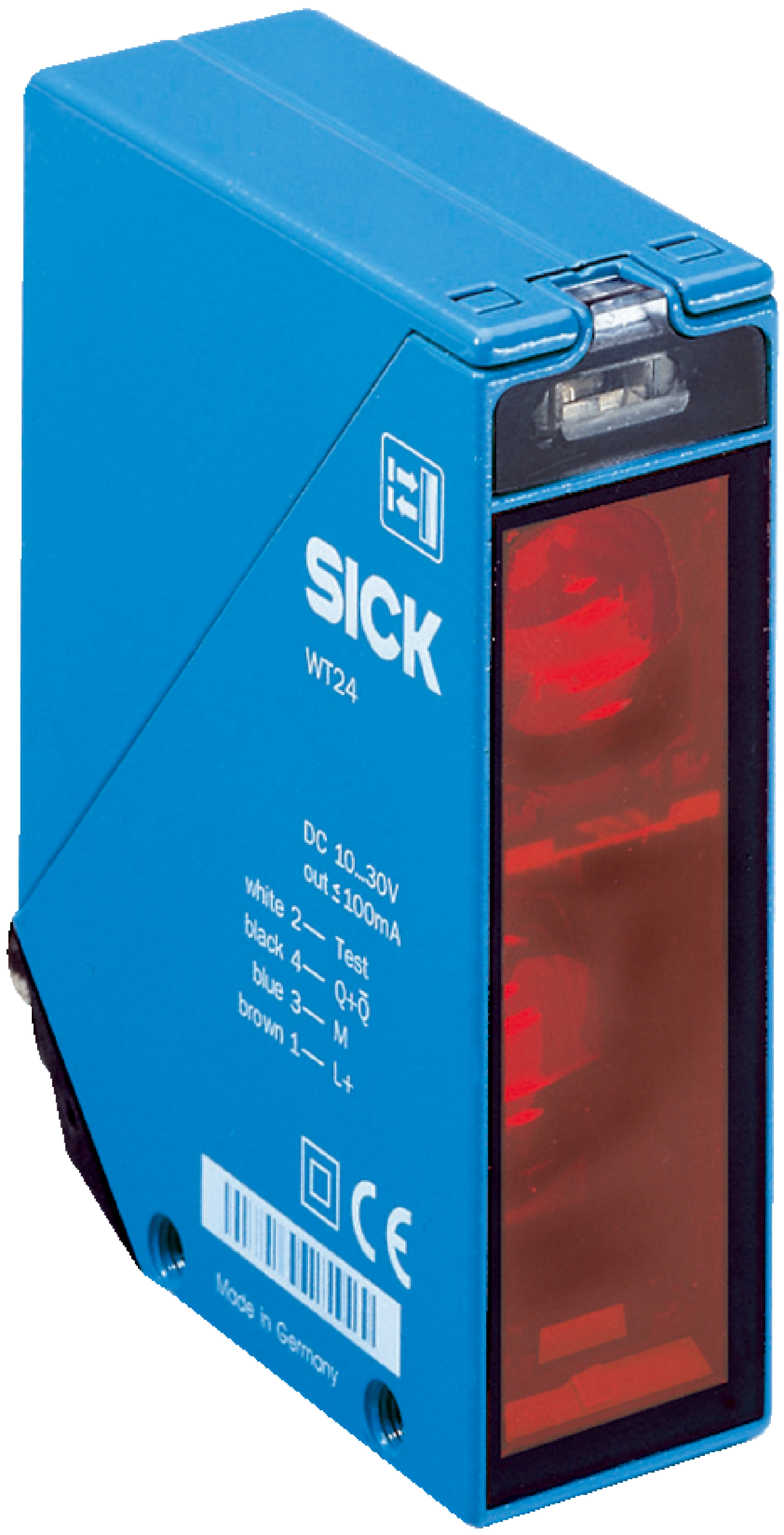

WT24-2B410
Product ID:59197
Updated: 2026/7/7
Key Features
- 1Reliable detection in various industrial applications with a sensing range of 2,500mm.
- 2Compatible with both NPN and PNP configurations for versatile use.
- 3Robust construction and advanced functionality ensure durability in harsh conditions.
- 4Adjustable potentiometer for precise light spot size and distance control.
- 5IP69K rating for protection against water and dust, ensuring consistent performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Functional principle | Photoelectric proximity sensor | Functional principle detail | Background suppression |
| Dimensions (W x H x D) | 27 mm x 87.5 mm x 65 mm | Housing design (light emission) | Rectangular |
| Sensing range max. | 100 mm ... 2,500 mm | Sensing range | 100 mm ... 2,500 mm |
| Type of light | Infrared light | Light source | LED |
| Light spot size (distance) | Ø 80 mm (2,500 mm) | Adjustment | Potentiometer |
| Supply voltage UB | 10 V DC ... 30 V DC | Ripple | < 5 V |
| Current consumption | 50 mA | Switching output | NPN, PNP |
| Switching mode | Light/dark switching | Switching mode selector | Selectable via PNP/NPN selector, selectable via light/dark selector |
| Output current Imax. | ≤ 100 mA | Response time | ≤ 500 µs |
| Switching frequency | 1,000 Hz | Connection type | Male connector M12, 4-pin |
| Circuit protection | A6)#!#C7)#!#D8) | Protection class | II |
| Weight | 330 g | Housing material | Metal, zinc diecast |
| Optics material | Plastic, PMMA | Enclosure rating | IP69K |
| Test input sender off | TE to 0 V | Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C | UL File No. | NRKH.E181493 & NRKH7.E181493 |
Specifications may be subject to change without notice
