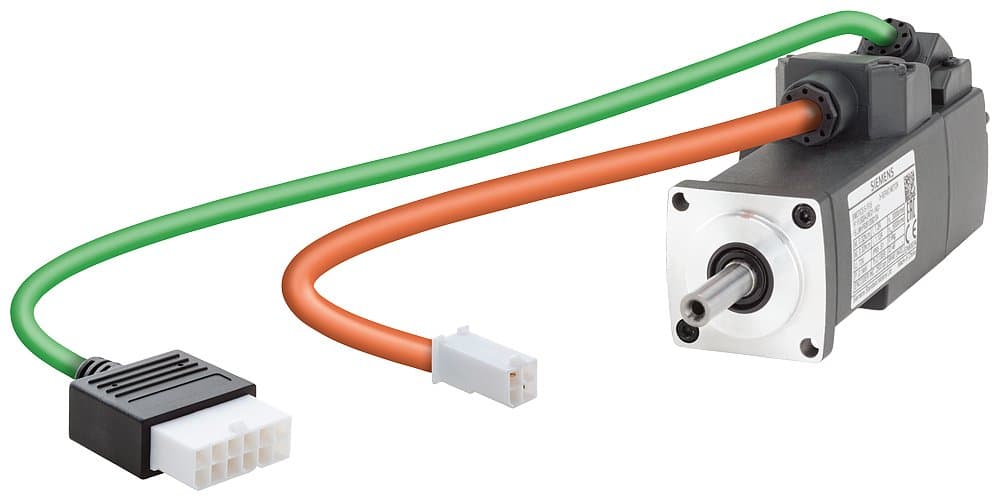

1FL6022-2AF21-1AG1
Product ID:213734
Updated: 2026/6/30
Key Features
- 1Operate at 230 V 3AC with a 0.05 kW power rating.
- 2Achieve rapid response in low inertia applications (0.031 kgcm²).
- 3Ensure precise control with a TTL incremental encoder (2500 S/R).
- 4Maintain reliability with thermal class B (130 °C) rating.
- 5Integrate easily into compact spaces with a 20 mm shaft height.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Environmental Temperature / During Operation / Maximum Value | 40 °C | Environmental Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 0.50 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.14 N.m/A |
| Consumption Current / Maximum Value | 3.60 A | Consumption Current / Winding Overheating 85K / Value | 1.20 A |
| Output Mechanical Power [hp] | 0.07 hp | Output Mechanical Power / Winding Overheating 85K / Value | 0.05 kW |
| Shaft Height / Rated Value / Remarks | 20 | Torque / Maximum Value | 0.48 N.m |
| Shaft End Model / Drive Side | Smooth Shaft | Speed / Value | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6022-2AF21-1AG1 |
Specifications may be subject to change without notice
