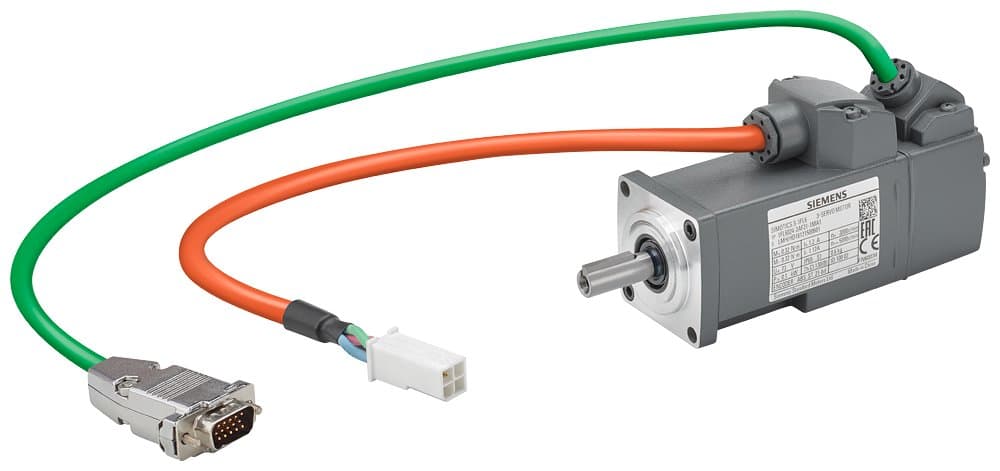

1FL6022-2AF21-1MB1
Product ID:100738
Updated: 2026/4/3
Key Features
- 1Optimize high-speed applications with a low inertia design. 2、Ensure secure positioning using the integrated keyway and holding brake. 3、Meet strict safety and reliability standards with CE and ISO certification. 4、Deploy versatilely in both workstation and server environments. 5、Reduce energy consumption through a high-efficiency motor design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certifications | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (No Condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
| Ambient Temperature / During Operation / Maximum | 40 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
| Vibration Level Rating | Level A | Net Weight / With Brake Motor | 0.70 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.14 N.m/A |
| Consumption Current / Maximum | 3.60 A | Consumption Current / Winding Overheating 85 K / Rating | 1.20 A |
| Output Mechanical Power [hp] | 0.07 hp | Output Mechanical Power / Winding Overheating 85 K / Rating | 0.05 kW |
| Shaft Height / Rated Value / Remarks | 20 | Torque / Maximum | 0.48 N.m |
| Shaft End Model / Drive Side | Keyed Shaft | Speed / Rating | 3000 1/min |
| Parking Brake | Yes | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6022-2AF21-1MB1 |
Specifications may be subject to change without notice
