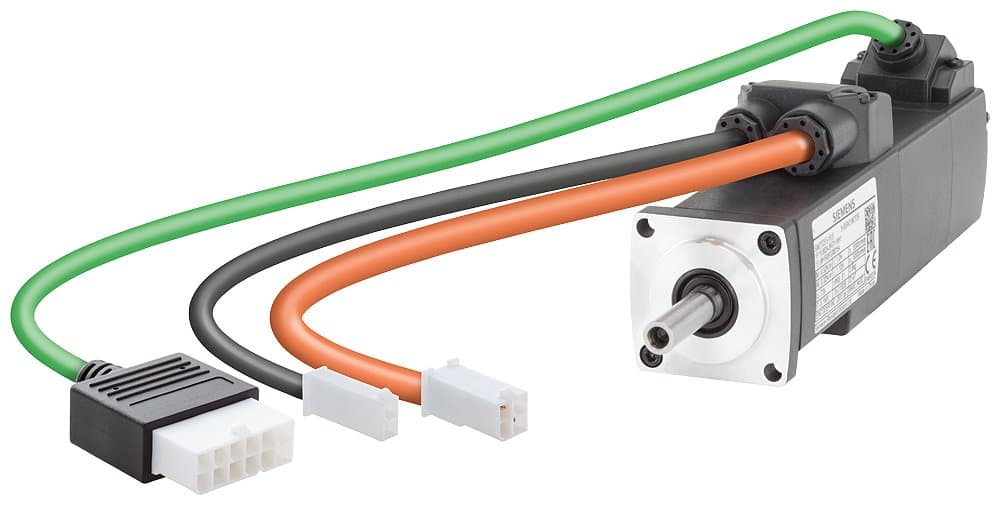

1FL6024-2AF21-1AB1
Product ID:101565
Updated: 2026/4/5
Key Features
- 1Deliver high dynamic performance with low rotor inertia. 2、Integrate seamlessly with SINAMICS V90 servo converters. 3、Operate reliably with IP65 protection in harsh conditions. 4、Ensure precise positioning via 2500-turn incremental encoder. 5、Enhance safety using the integrated holding brake.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (No Condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
| Environmental Temperature / During Operation / Maximum | 40 °C | Environmental Temperature / During Operation / Minimum | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor with Brake | 0.90 kg |
| Structure Form of Rotating Motor / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheat 85K | 0.29 N.m/A |
| Consumption Current / Maximum | 3.60 A | Consumption Current / Winding Overheat 85K / Value | 1.20 A |
| Output Mechanical Power [hp] | 0.14 hp | Output Mechanical Power / Winding Overheat 85K / Value | 0.10 kW |
| Shaft Height / Rated / Remarks | 20 | Torque / Maximum | 0.96 N.m |
| Shaft Type / Drive Side | Keyed Shaft | Speed / Value | 3000 1/min |
| Parking Brake | Yes | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6024-2AF21-1AB1 |
Specifications may be subject to change without notice
