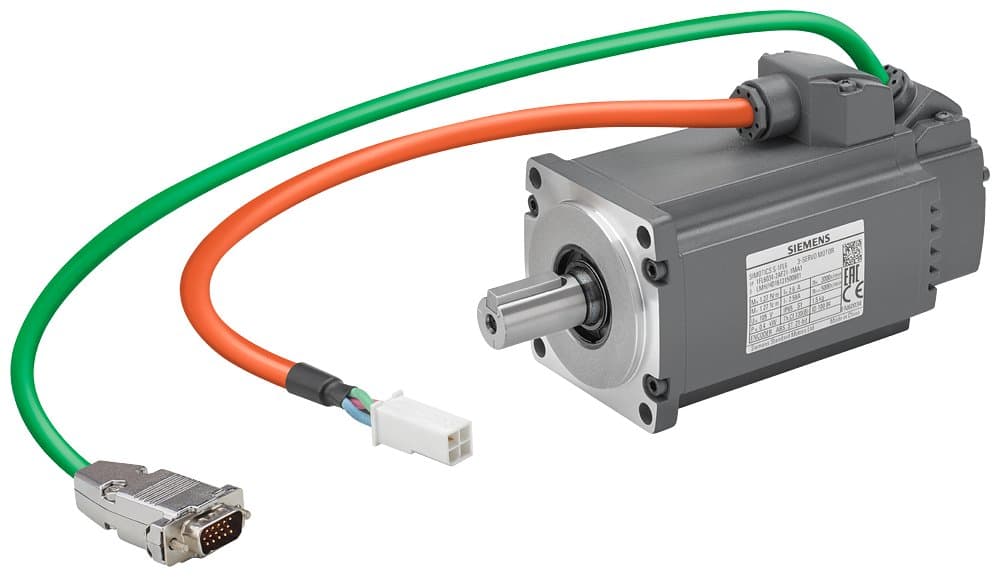

1FL6032-2AF21-1MA1
Product ID:111232
Updated: 2026/7/4
Key Features
- 1Deliver 300% overload capability for peak performance demands.
- 2Operate efficiently without an external cooling fan.
- 3Ensure precise positioning with a 21-bit absolute encoder.
- 4Integrate seamlessly with SINAMICS V90 servo drives.
- 5Save space using a compact 30mm shaft height design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certifications | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Ambient Temperature / During Operation / Maximum Value | 40 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 1.00 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.48 N.m/A |
| Consumption Current / Maximum Value | 4.20 A | Consumption Current / Winding Overheating 85 K / Measured Value | 1.40 A |
| Output Mechanical Power [hp] | 0.27 hp | Output Mechanical Power / Winding Overheating 85 K / Measured Value | 0.20 kW |
| Shaft Height / Rated Value / Remarks | 30 | Torque / Maximum Value | 1.91 N.m |
| Shaft End Model / Drive Side | Keyed Shaft | Speed / Measured Value | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6032-2AF21-1MA1 |
Specifications may be subject to change without notice
