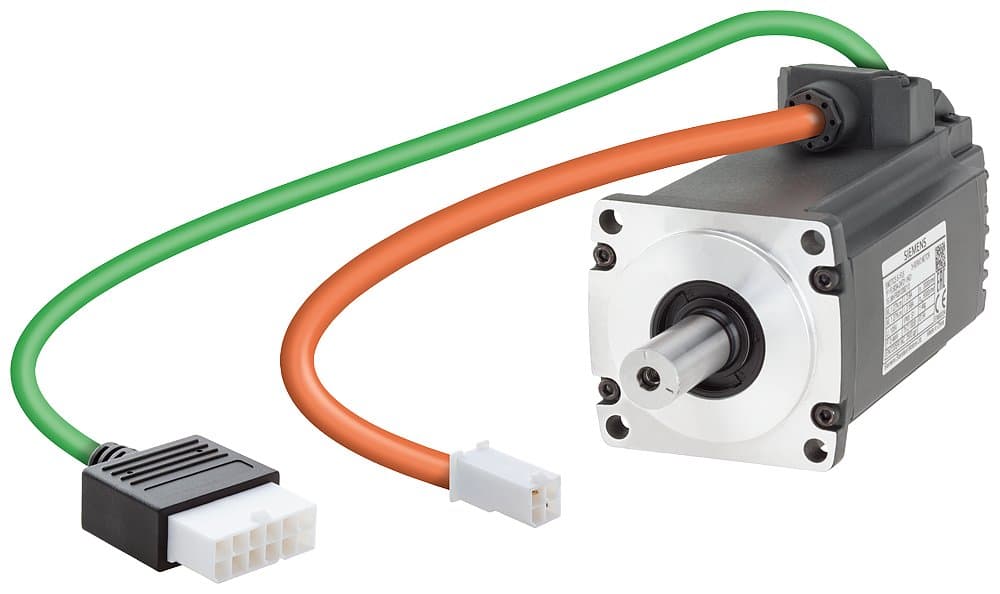

1FL6034-2AF21-1AA1
Product ID:200730
Updated: 2026/4/9
Key Features
- 1Deliver high-performance synchronous AC motor reliability for industrial processes. 2、Achieve efficient operation with a 3000 rpm output speed. 3、Provide robust 1.27 Nm torque for demanding mechanical applications. 4、Ensure durability in harsh conditions with IP65 protection sealing. 5、Enable precise control via a TTL 2500 incr./rev incremental encoder.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Ambient Temperature / During Operation / Maximum Value | 40 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 1.50 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.49 N.m/A |
| Consumption Current / Maximum Value | 7.80 A | Consumption Current / Winding Overheating 85 K / Rated Value | 2.60 A |
| Output Mechanical Power [hp] | 0.54 hp | Output Mechanical Power / Winding Overheating 85 K / Rated Value | 0.40 kW |
| Shaft Height / Rated Value / Remarks | 30 | Torque / Maximum Value | 3.82 N.m |
| Shaft End Model / Drive Side | Keyed Shaft | Speed / Rated Value | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6034-2AF21-1AA1 |
Specifications may be subject to change without notice
