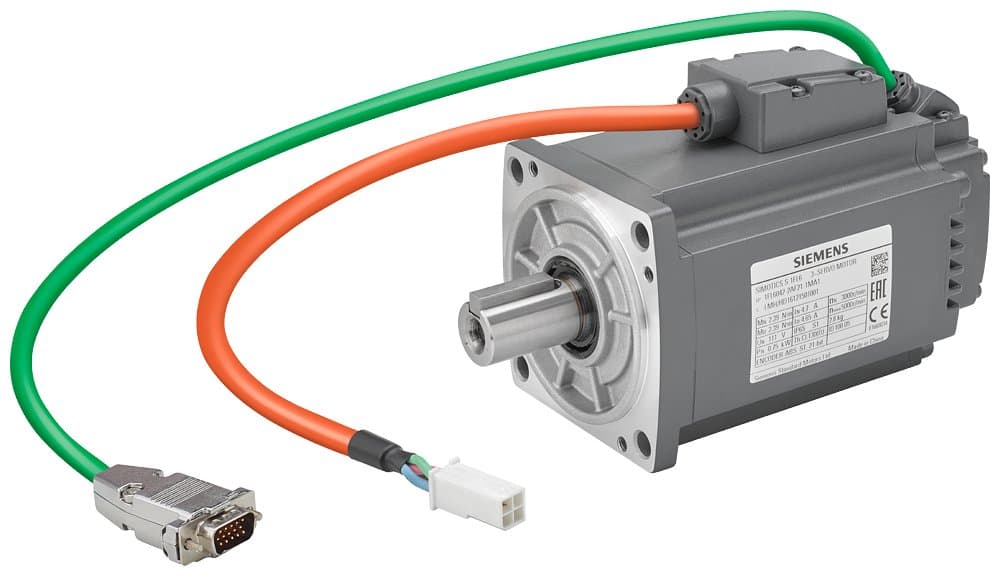

1FL6042-2AF21-1MA1
Product ID:128950
Updated: 2026/4/3
Key Features
- 1Equip your system with a 21-bit absolute encoder for ultimate precision. 2、Feature a robust 40 mm shaft height and IP65 protection rating. 3、Deliver 0.75 kW of power and 2.39 Nm torque at 3000 rpm reliably. 4、Meet RoHS and WEEE compliance directives effortlessly since 2018. 5、Integrate seamlessly with SINAMICS V90 drives for automation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Cable Outlet | Certifications | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
| Ambient Temperature / During Operation / Maximum | 40 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 2.80 kg |
| Structure Form of Rotating Motor / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85 K | 0.51 N.m/A |
| Consumption Current / Maximum | 14.20 A | Consumption Current / Winding Overheating 85 K / Rating | 4.70 A |
| Mechanical Output Power [hp] | 1.02 hp | Mechanical Output Power / Winding Overheating 85 K / Rating | 0.75 kW |
| Shaft Height / Rated Value / Remarks | 40 | Torque / Maximum | 7.20 N.m |
| Shaft End Model / Drive Side | Keyed Shaft | Speed / Rating | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6042-2AF21-1MA1 |
Specifications may be subject to change without notice
