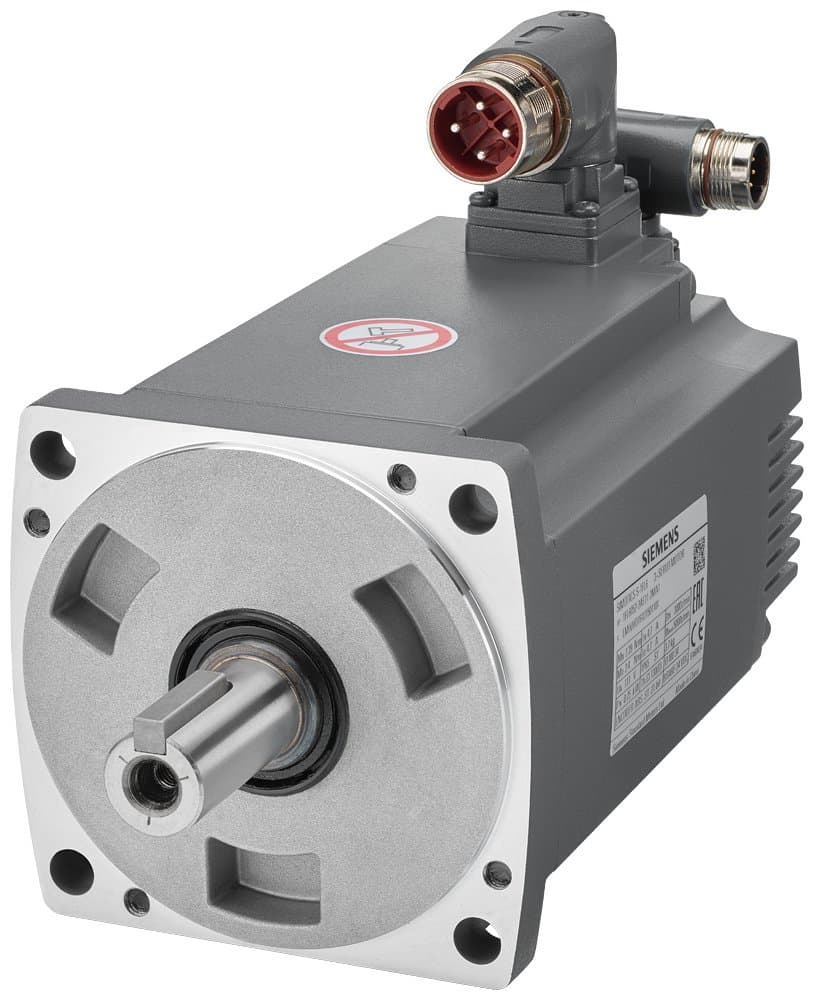

1FL6052-2AF21-2MA1
Product ID:106805
Updated: 2026/4/5
Key Features
- 1Deliver high dynamics and precision for exact motion control. 2、Install the compact motor in space-constrained panels. 3、Utilize permanent magnet synchronous motor technology. 4、Operate at 230V 3AC with a 1.5 kW power rating. 5、Integrate seamlessly with SINAMICS V90 drives at 3000 rpm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Bent connector (rotatable) for any output direction | Certifications | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
| Ambient Temperature / During Operation / Maximum | 30 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 5.50 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Class IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.46 N.m/A |
| Consumption Current / Maximum | 31.80 A | Consumption Current / Winding Overheating 85K / Rating | 10.60 A |
| Mechanical Output Power [hp] | 2.04 hp | Mechanical Output Power / Winding Overheating 85K / Rating | 1.50 kW |
| Shaft Height / Rating / Remarks | 50 | Torque / Maximum | 14.30 N.m |
| Shaft End Model / Drive Side | Keyway Shaft | Speed / Rating | 3000 1/min |
| Parking Brake | No | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6052-2AF21-2MA1 |
Specifications may be subject to change without notice
