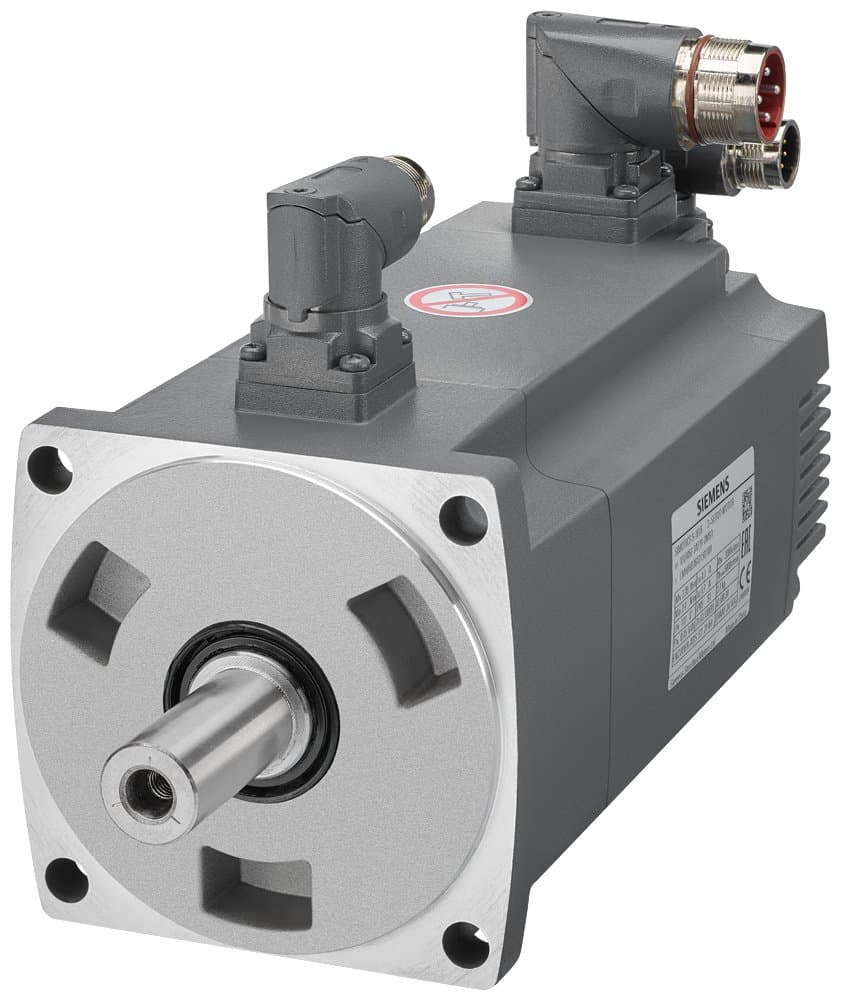

1FL6052-2AF21-2MB1
Product ID:106270
Updated: 2026/4/5
Key Features
- 1Withstand 300% overload for reliable peak performance. 2、Dissipate heat efficiently through the motor's natural surface cooling. 3、Ensure precise positioning with a high-resolution 21-bit absolute encoder. 4、Optimize system response and dynamics for high-performance applications. 5、Integrate seamlessly with SINAMICS V90 drives for enhanced functionality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Bent Connector (Rotatable) for Any Output Direction | Qualification Certificates | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (No Condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Ambient Temperature / During Operation / Maximum Value | 30 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Grade | Grade A | Net Weight / Motor with Brake | 7.00 kg |
| Structure Form of Rotating Motor / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.46 N.m/A |
| Consumption Current / Maximum Value | 31.80 A | Consumption Current / Winding Overheating 85K / Value | 10.60 A |
| Output Mechanical Power [hp] | 2.04 hp | Output Mechanical Power / Winding Overheating 85K / Value | 1.50 kW |
| Shaft Height / Rated Value / Remarks | 50 | Torque / Maximum Value | 14.30 N.m |
| Shaft End Model / Drive Side | Keyway Shaft | Speed / Value | 3000 1/min |
| Parking Brake | Yes | Motor Type | Low Inertia |
| Product Type | S-1FL6 Servo Motor | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1FL6052-2AF21-2MB1 |
Specifications may be subject to change without notice
