Key Features
- 1Deliver high performance and reliability for precision applications. 2、Operate at 230 V 3AC with a 2 kW power rating. 3、Achieve efficient operation with a speed of 3000 rpm. 4、Feature a 50 mm shaft diameter with an angle plug. 5、Receive coverage from a 12-month warranty by WiAutomation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Angular connector (rotatable) for any output direction | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum | 90% |
| Ambient Temperature / During Operation / Maximum | 30 °C | Ambient Temperature / During Operation / Minimum | 0 °C |
| Vibration Level Rating | Level A | Net Weight / With Brake | 8.20 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 0.55 N.m/A |
| Consumption Current / Maximum Value | 34.80 A | Consumption Current / Winding Overheating 85K / Rating | 11.60 A |
| Mechanical Output Power [hp] | 2.72 hp | Mechanical Output Power / Winding Overheating 85K / Rating | 2.00 kW |
| Shaft Diameter / Rating / Remarks | 50 | Torque / Maximum Value | 19.10 N.m |
| Shaft End Model / Drive Side | Keyway Shaft | Speed / Rating | 3000 1/min |
| Parking Brake | Yes | Motor Type | Low Inertia |

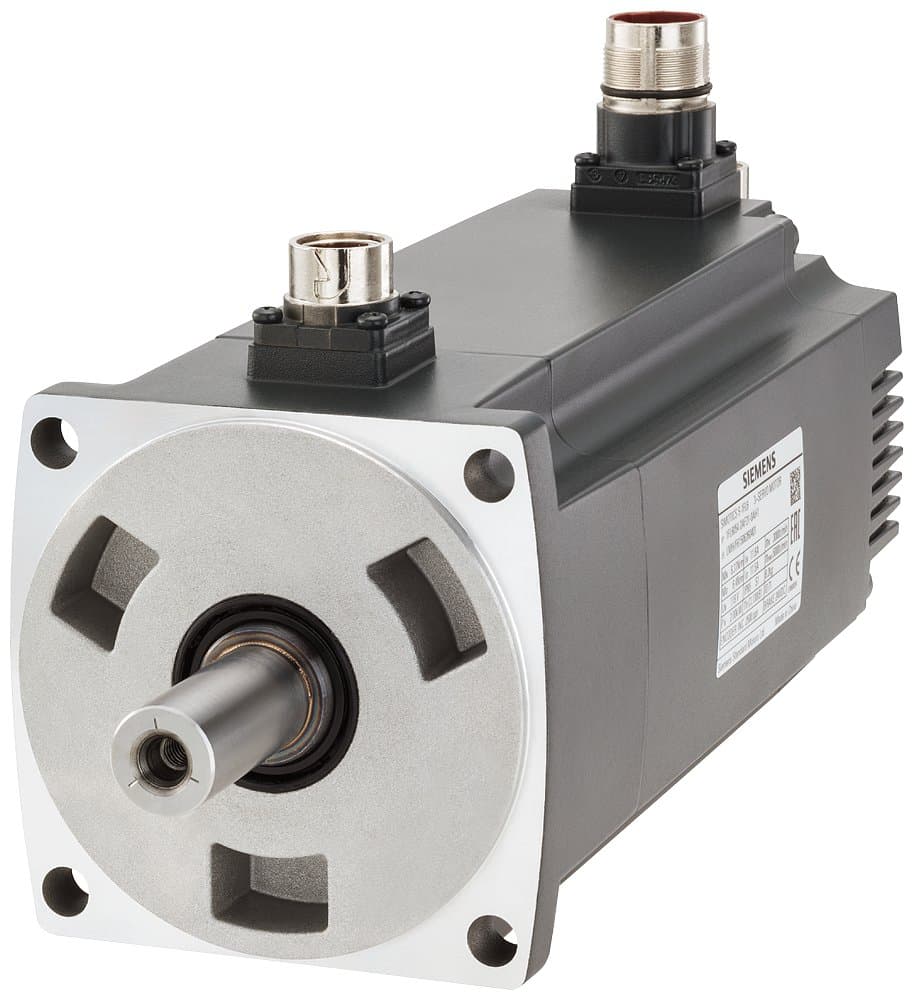

| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6054-2AF21-2AB1 |
Specifications may be subject to change without notice
