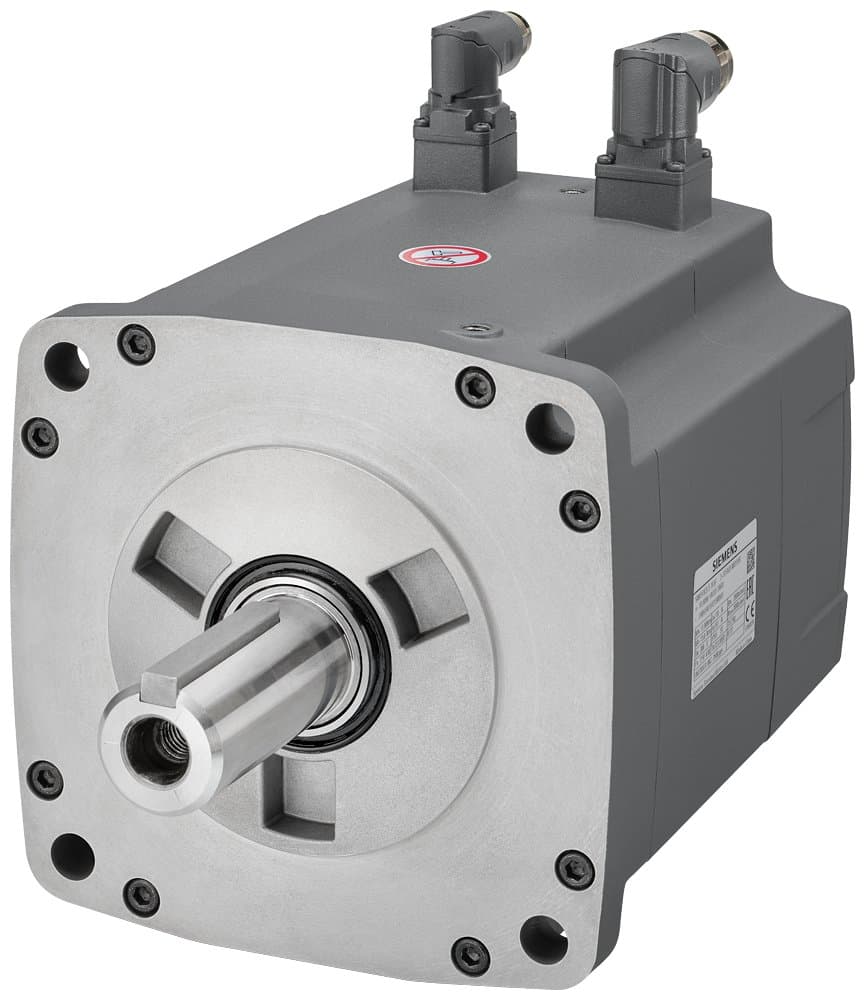

1FL6090-1AC61-2AA1
Product ID:165117
Updated: 2026/4/20
Key Features
- 1Operate efficiently with 3AC 400 V high voltage. 2、Deliver robust performance using 2.5 kW rated power. 3、Achieve fast movement at 2000 rpm high speed. 4、Control torque precisely with 11.9 Nm nominal rating. 5、Enable accurate positioning via 2500 increments encoder.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Bent connector (rotatable) for any output direction | Certifications | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Ambient Temperature / During Operation / Maximum Value | 40 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 15.40 kg |
| Structure Form of Rotating Electrical Machine / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 1.60 N.m/A |
| Consumption Current / Maximum Value | 23.40 A | Consumption Current / Winding Overheating 85K / Rated Value | 7.80 A |
| Mechanical Output Power [hp] | 3.40 hp | Mechanical Output Power / Winding Overheating 85K / Rated Value | 2.50 kW |
| Shaft Height / Rated Value / Remarks | 90 | Torque / Maximum Value | 35.70 N.m |
| Shaft End Model / Drive Side | Keyway Shaft | Speed / Rated Value | 2000 1/min |
| Parking Brake | No | Motor Type | High Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6090-1AC61-2AA1 |
Specifications may be subject to change without notice
