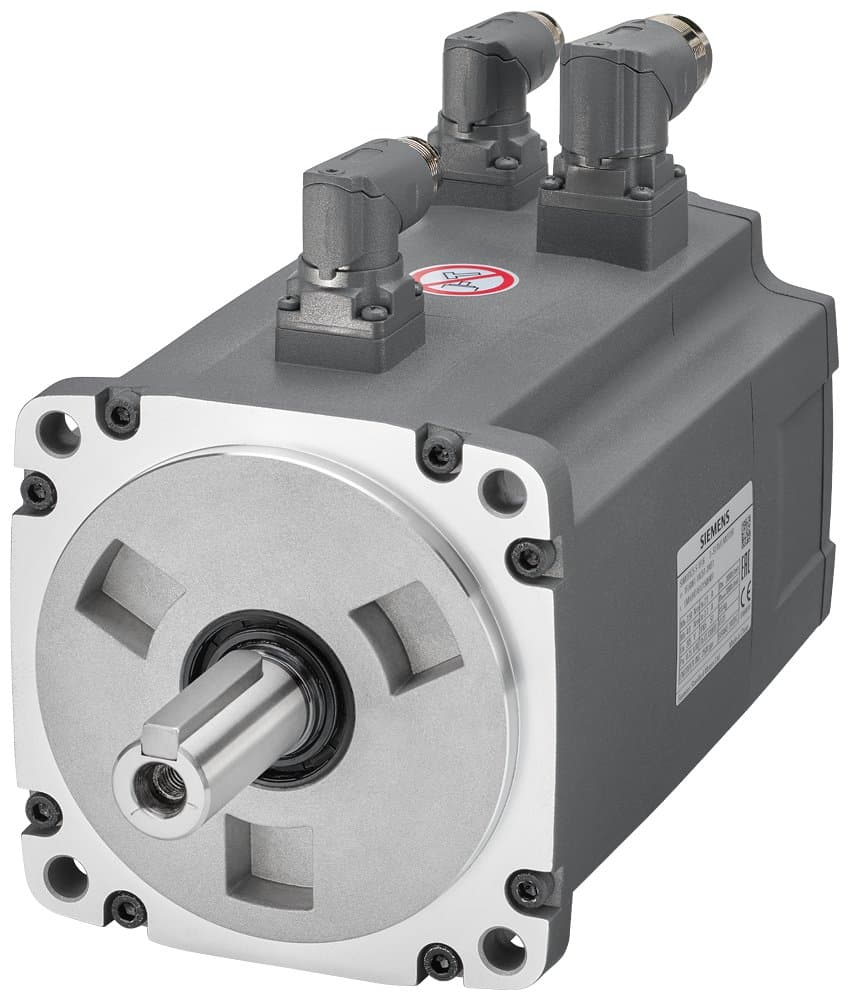

1FL6094-1AC61-2AA1
Product ID:226442
Updated: 2026/4/3
Key Features
- 1Deliver high dynamic performance and a wide speed control range. 2、Integrate seamlessly with SINAMICS V90 servo converters. 3、Operate robustly with IP65 protection and a sealing ring. 4、Ensure precise positioning with a 2500-line incremental encoder. 5、Save space using a compact 90mm shaft height design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Arrangement of Electrical Connection | Bent connector (rotatable) for any output direction | Certification | CE, EAC |
| Motor Specifications | Permanent Magnet Synchronous Motor | Cooling Method | Self-cooled |
| Relative Humidity / During Operation / Maximum Value / Remarks | Maximum RH (no condensation at 30 °C) | Relative Humidity / During Operation / Maximum Value | 90% |
| Ambient Temperature / During Operation / Maximum Value | 40 °C | Ambient Temperature / During Operation / Minimum Value | 0 °C |
| Vibration Level Rating | Level A | Net Weight / Motor | 24.40 kg |
| Structure Form of Rotating Motor / Code Conformity I | IM B5 (IM V1, IM V3) | Protection Rating IP | IP65 |
| Thermal Class | B (130 °C) | Torque Constant / Winding Overheating 85K | 2.00 N.m/A |
| Consumption Current / Maximum Value | 36.90 A | Consumption Current / Winding Overheating 85K / Rated Value | 12.60 A |
| Mechanical Output Power [hp] | 6.80 hp | Mechanical Output Power / Winding Overheating 85K / Rated Value | 5.00 kW |
| Shaft Height / Rated Value / Remarks | 90 | Torque / Maximum Value | 70.00 N.m |
| Shaft End Model / Drive Side | Keyway Shaft | Speed / Rated Value | 2000 1/min |
| Parking Brake | No | Motor Type | High Inertia |
| Product Type | S-1FL6 Servo Motor | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1FL6094-1AC61-2AA1 |
Specifications may be subject to change without notice
