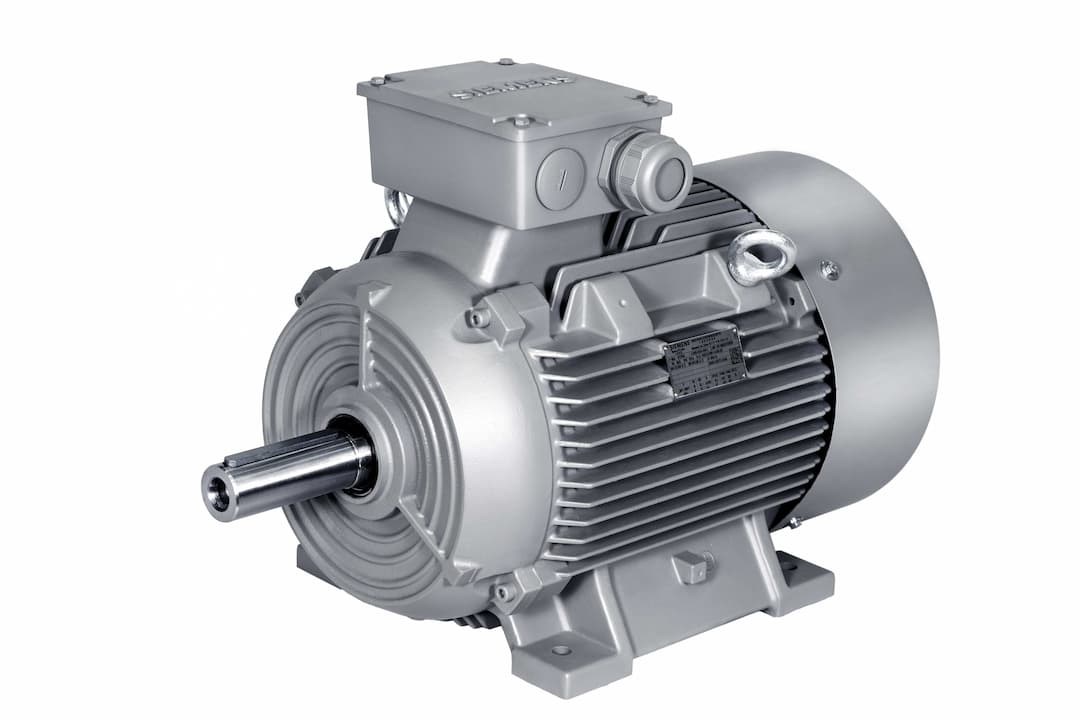

1LE0003-0EC42-1AC4
Product ID:100439
Updated: 2026/4/3
Key Features
- 1Achieve IE3 Premium Efficiency to reduce energy consumption by up to 30%. 2、Utilize cast iron housing and IP55 rating for durability in harsh conditions. 3、Select from 2, 4, 6, or 8 poles for various industrial applications. 4、Connect to 220V-660V power systems for maximum flexibility. 5、Optimize with frequency converters for enhanced efficiency and stability.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight | 28kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 11.1Nm | Rated Current | 3A |
| Mounting Method | IM B3 | Motor Shaft Height | FS90L |
| Rated Speed | 945rpm | Synchronous Speed | 1000rpm |
| Motor Poles | 6 pole | Rated Power | 1.1KW |
| Power Supply Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE0003-0EC42-1AC4 |
Specifications may be subject to change without notice
