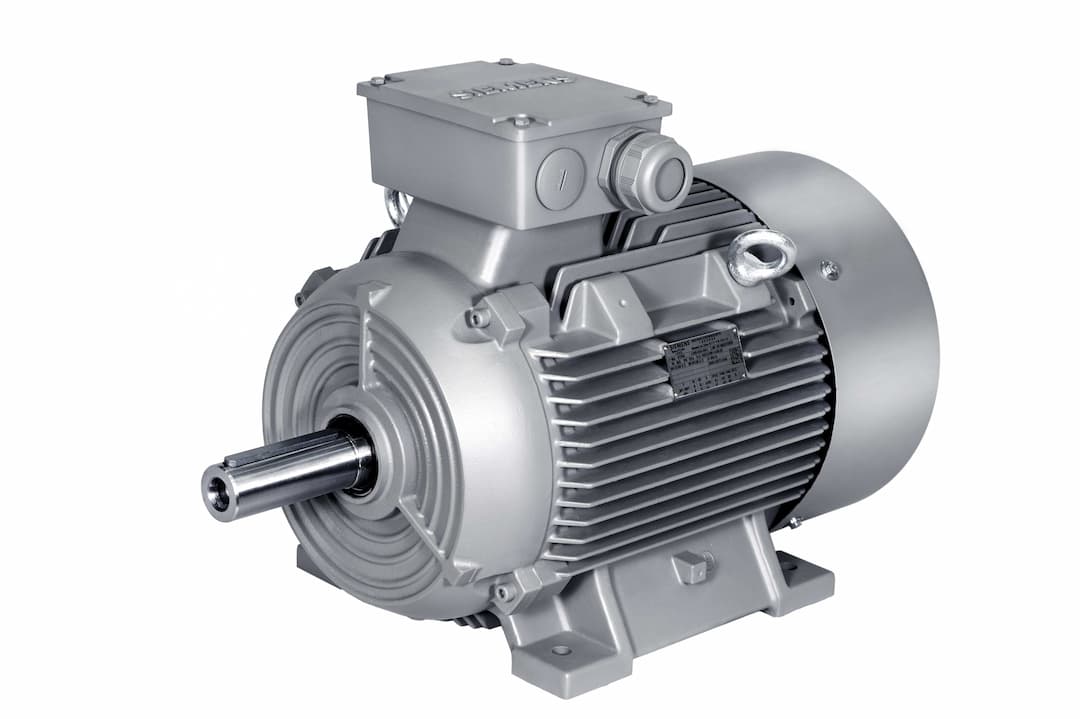

1LE0003-1CA03-3JB4-ZL20
Product ID:99208
Updated: 2026/7/2
Key Features
- 1Achieve IE3 Premium Efficiency to significantly reduce operational energy consumption.
- 2Select robust grey cast iron or aluminum frames for superior durability in tough environments.
- 3Install easily with versatile IM B3, B5, and B35 mounting options for flexible integration.
- 4Ensure reliable operation across a wide temperature range from -20°C to 40°C.
- 5Benefit from IP55 protection against dust and water jets for enhanced motor longevity.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 63kg | Operating Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 17.9 | Rated Current | 10.5 |
| Mounting Method | IM B35 | Shaft Height | FS132 |
| Rated Speed | 3515 | Synchronous Speed | 3600 |
| Number of Poles | 2 pole | Rated Power | 5.5kW |
| Number of Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 380VD/660VY | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1LE0003-1CA03-3JB4-ZL20 |
Specifications may be subject to change without notice
