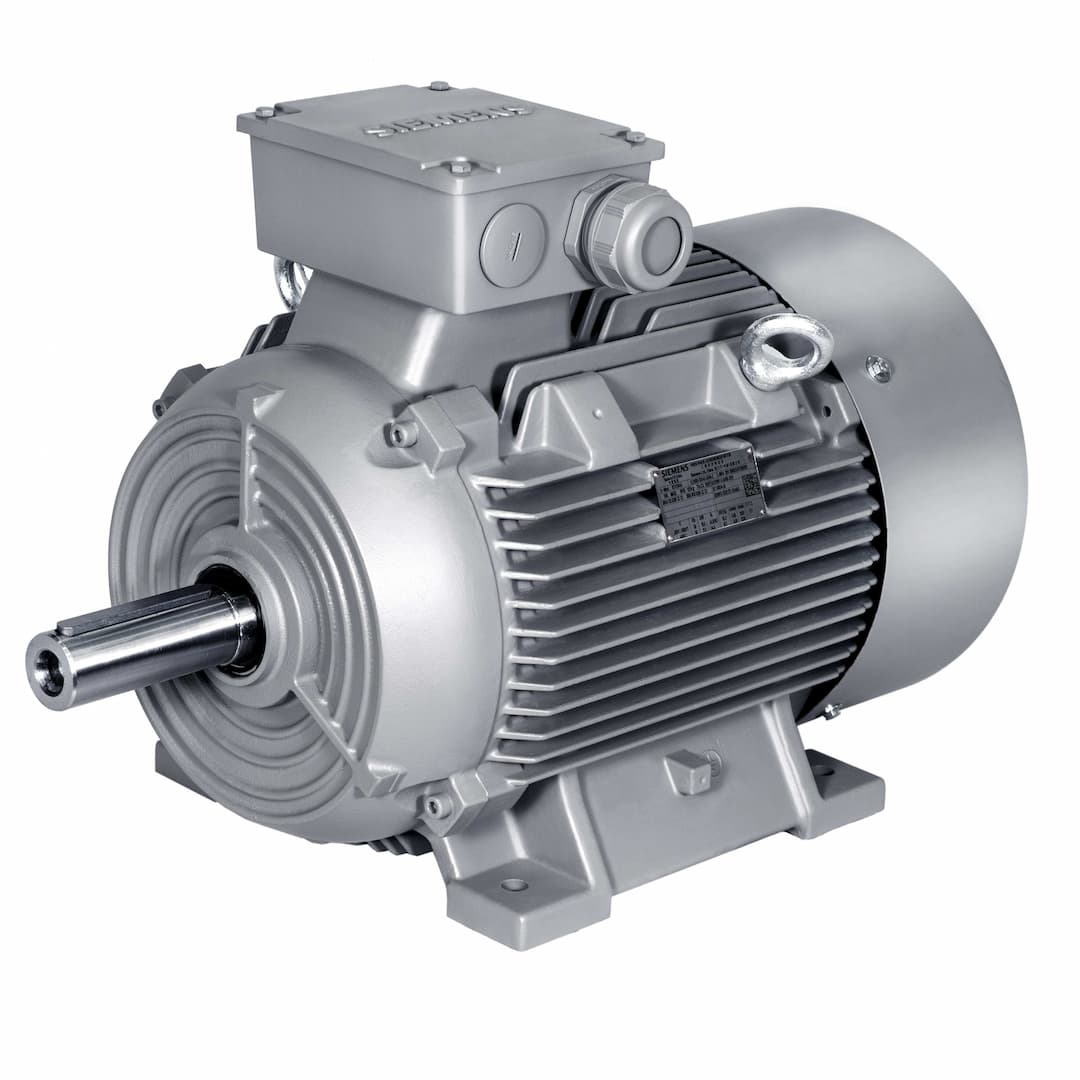

1LE0004-3AA73-3AA5
Product ID:103635
Updated: 2026/4/3
Key Features
- 1Achieve IE4 efficiency and GB18613-2020 grade 2 compliance. 2、Optimize space with a compact and robust structural design. 3、Ensure reliable operation in harsh conditions with IP55 protection. 4、Support continuous duty (S1) and variable speed applications seamlessly. 5、Enhance longevity with optional re-greasing devices and winding protections.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight | 1378kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 641Nm | Rated Current | 355/205 |
| Mounting Method | IM B3 | Motor Shaft Height | FS315L |
| Rated Speed | 2980rpm | Synchronous Speed | 3000rpm |
| Motor Poles | 2 pole | Rated Power | 200KW |
| Power Supply Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE0004-3AA73-3AA5 |
Specifications may be subject to change without notice
