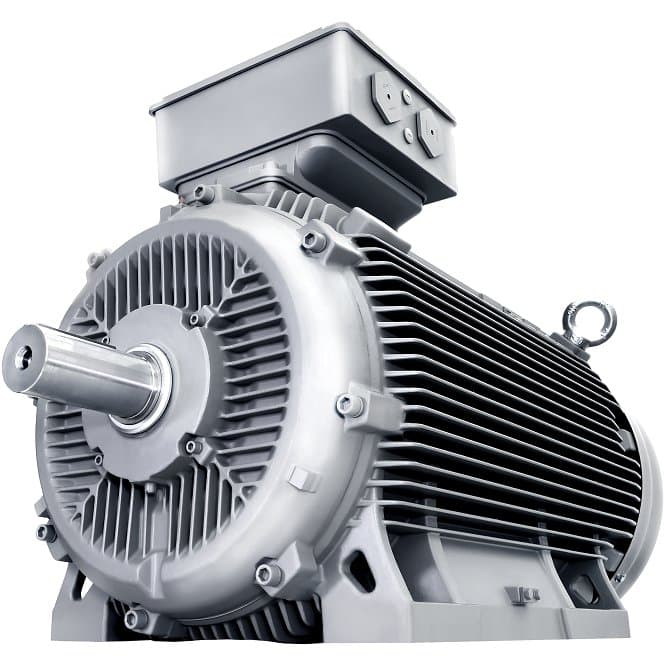

1LE8003-3BC33-3AA4
Product ID:210825
Updated: 2026/4/3
Key Features
- 1Achieve high IE3 efficiency to cut energy costs. 2、Ensure durability with a robust cast-iron housing. 3、Select from 250 kW (50 Hz) or 280 kW (60 Hz) power. 4、Protect against dust and water with IP55 rating. 5、Integrate seamlessly with global IEC standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Unit Weight (kg) | 2270kg | Operating Ambient Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 3414Nm | Rated Current | 660/380 |
| Mounting Method | IM B3 | Motor Shaft Height | FS355 |
| Rated Speed | 993rpm | Synchronous Speed | 1000rpm |
| Motor Poles | 6 pole | Rated Power | 355KW |
| Power Supply Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 220VD/380VY | Product Type | SIMOTICS SD Low Voltage Motor |
| Lifecycle | P.M300 | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 1LE8003-3BC33-3AA4 |
Specifications may be subject to change without notice
