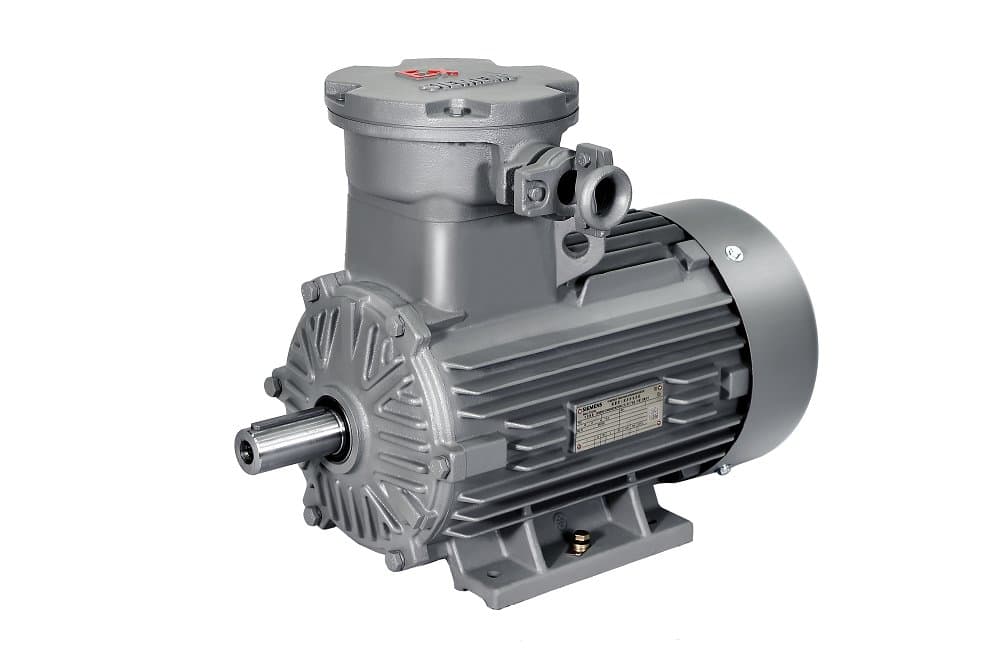

1MB0063-2AA53-3AA4-ZB43
Product ID:100622
Updated: 2026/4/3
Key Features
- 1Achieve IE3 efficiency standards to cut energy costs. 2、Enjoy worldwide warranty and service for reliable operation. 3、Integrate with SINAMICS drives for precise speed control. 4、Utilize IP55 protection and cast-iron housing for durability. 5、Select various voltage and mounting types for your needs.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Weight | 321kg | Operating Temperature | -20℃ ~ 40℃ |
| Operating Altitude | <1000m | Protection Rating | IP55 |
| Rated Torque | 120Nm | Rated Current | 67A |
| Mounting Method | IM B3 | Frame Size | FS200 |
| Rated Speed | 3545 | Synchronous Speed | 3600 |
| Number of Poles | 2 pole | Rated Power | 37kW |
| Number of Phases | 3AC | Rated Frequency | 50Hz |
| Rated Voltage | 380V△/660VY | Lifecycle | P.M300 |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 1MB0063-2AA53-3AA4-ZB43 |
Specifications may be subject to change without notice
