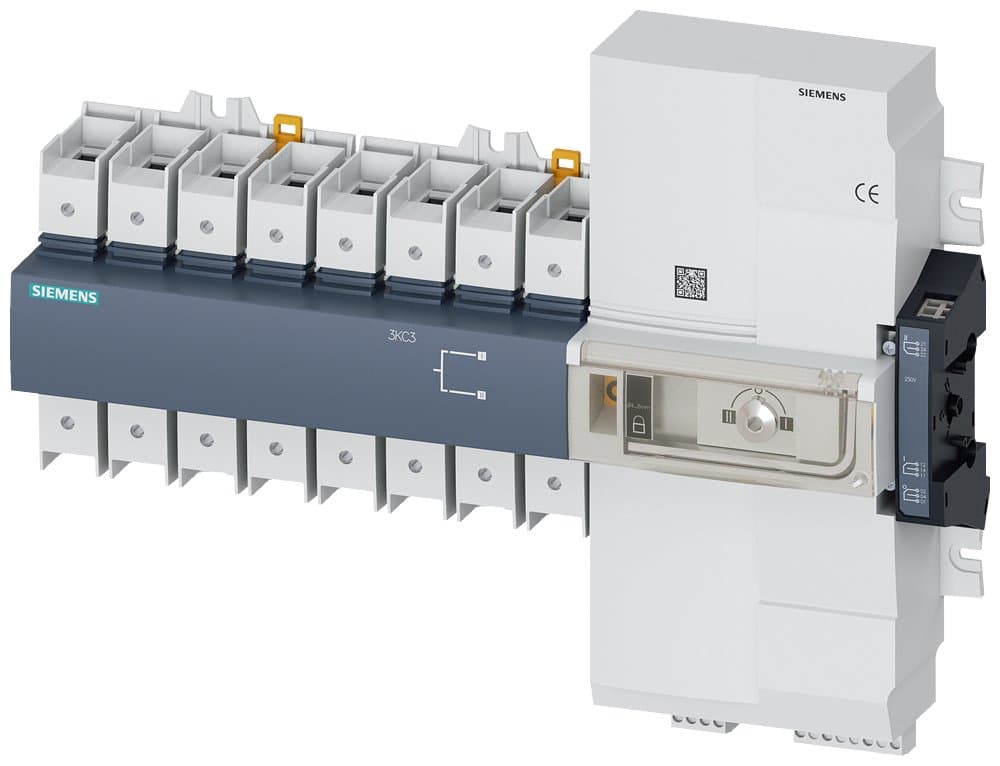

3KC3426-2AA22-0AA3
Product ID:115147
Updated: 2026/7/2
Key Features
- 1Remotely operate the switch for easy control and management.
- 2Handle high currents up to 63 A for efficient power distribution.
- 3Ensure stable operation with a robust 4-pole design.
- 4Enjoy smooth switching via a motorized mechanism and long handle.
- 5Simplify installation with box terminals and 35mm rail mounting.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC3 PC-63A-4P Without controller; PC-level; Rated current 63A; 4P remote control transfer switch; Equipped with excitation drive mechanism and integrated controller, additional front operation mechanism, position indication auxiliary contact option | Impact Withstand Voltage (kV) | 6 |
| Application Type | AC-33iB [Cage motor and resistive load for AC] | Other | Remote control transfer switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 63 |
| Specification | 3KC3 [40-160A] | Control Type | Without Controller |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC3426-2AA22-0AA3 |
Specifications may be subject to change without notice
