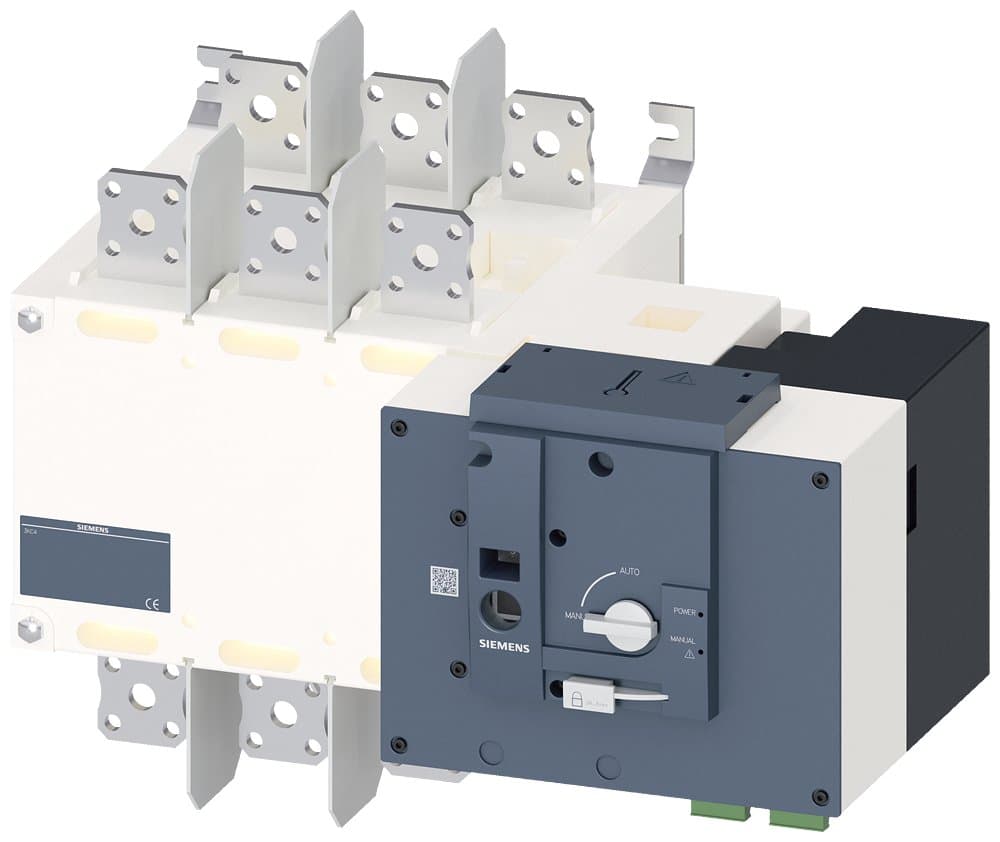

3KC4348-0FA21-0AA3
Product ID:216116
Updated: 2026/4/3
Key Features
- 1Control transfer switching remotely for operational efficiency. 2、Handle demanding loads with a high 800A current capacity. 3、Ensure reliability with a robust design for harsh environments. 4、Maintain continuous power with fail-safe operation and stable switching. 5、Simplify installation with a compact design and easy DIN rail mounting.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC4 PC-800A-3P Without Controller; PC-level; Rated Current 800A; 3P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indication Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 3 | In(A) | 800 |
| Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC4348-0FA21-0AA3 |
Specifications may be subject to change without notice
