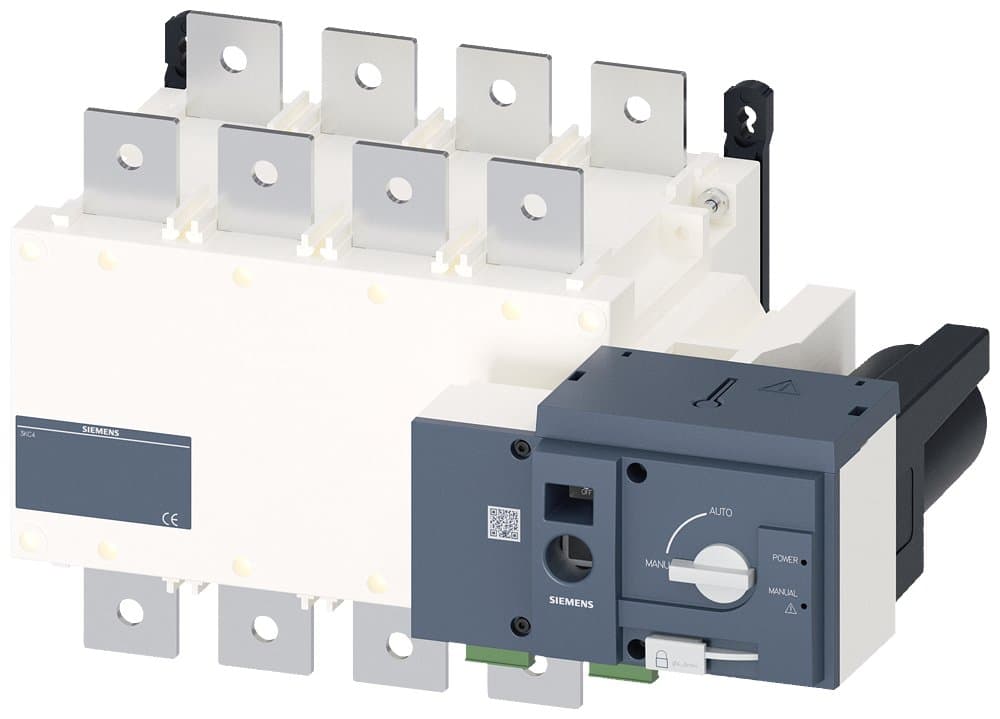

3KC4446-0EA21-0AA3
Product ID:181064
Updated: 2026/4/3
Key Features
- 1Remotely operate transfer switching with a 630 A current capacity. 2、Configure for 4-pole systems at 415 V AC voltage. 3、Utilize a motorized operating mechanism and long handle. 4、Connect via busbar for secure power distribution. 5、Ensure environmental safety with RoHS compliance since 2015.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC4 PC-630A-4P Without Controller; PC-level; Rated Current 630A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indicating Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Remote Control Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 630 |
| Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC4446-0EA21-0AA3 |
Specifications may be subject to change without notice
