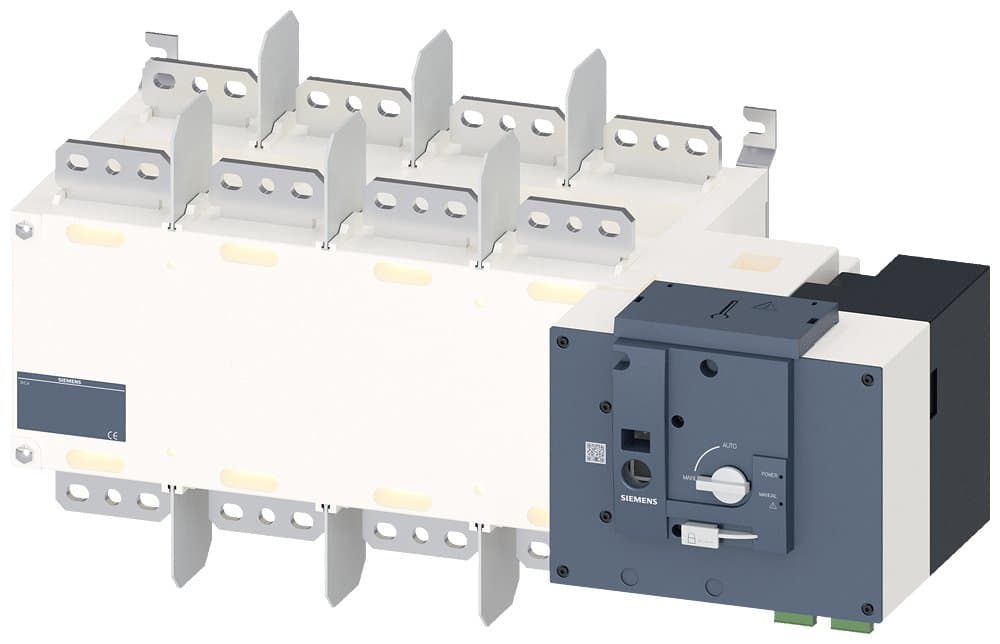

3KC4454-0HA21-0AA3
Product ID:192964
Updated: 2026/8/2
Key Features
- 1Control the transfer switch remotely for enhanced safety and convenience.
- 2Handle up to 1600A current with a robust 4-pole configuration.
- 3Operate easily using the motorized mechanism and long rotary handle.
- 4Simplify installation with the integrated busbar connection system.
- 5Ensure compliance with IEC 60947-6-1 and IEC 60947-3 safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC4 PC-1600A-4P Without Controller; PC-level; Rated Current 1600A; 4P Remote Control Transfer Switch; Equipped with Motor Drive Mechanism, Additional Front Operation Mechanism, Standard Position Indicating Auxiliary Contacts Set | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 1600 |
| Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC4454-0HA21-0AA3 |
Specifications may be subject to change without notice
