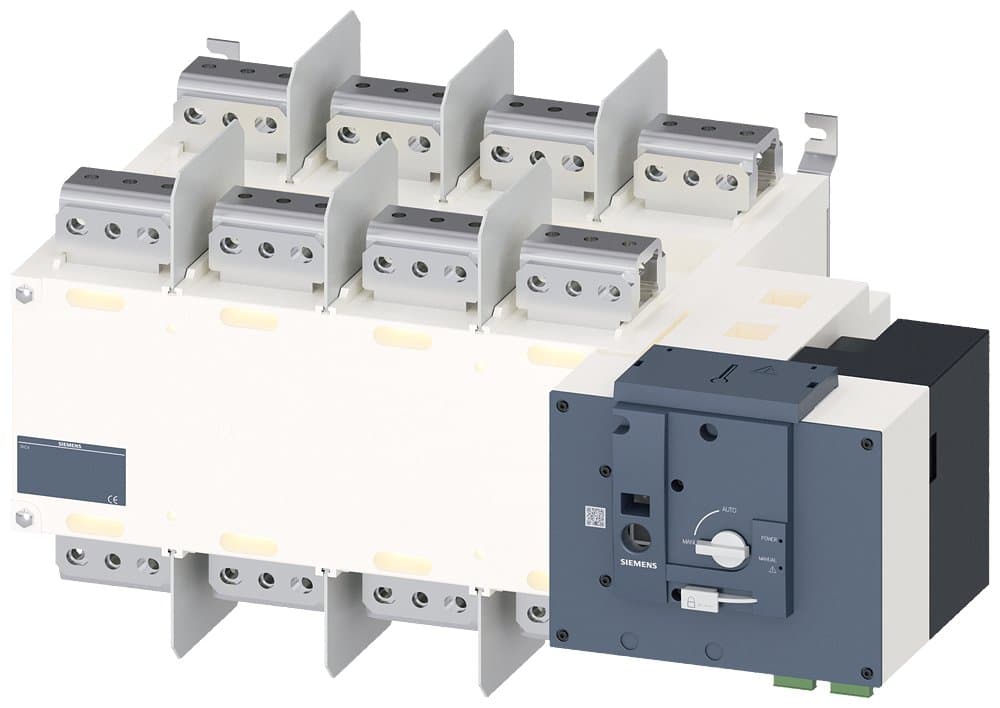

3KC4460-0JA21-0AA3
Product ID:152293
Updated: 2026/4/3
Key Features
- 1Deliver reliable 3200A switching for robust power distribution. 2、Ensure operational safety with advanced electrical and mechanical interlocking. 3、Simplify installation via a user-friendly motor operating mechanism and right-side mounting. 4、Maximize uptime with durable construction designed for long-lasting industrial performance. 5、Adapt to diverse applications with versatile 4-pole configuration and customizable settings.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC4 PC-3200A-4P Without Controller; PC-level; Rated Current 3200A; 4P Remote Control Operation Transfer Switch; Equipped with Motorized Operating Mechanism, Additional Front Operation Mechanism, Standard Configuration of One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [Cage Motor and Resistive Load for AC] | Other | Remote Control Operation Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 3200 |
| Specification | 3KC4 [250-3200A] | Control Type | Without Controller |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC4460-0JA21-0AA3 |
Specifications may be subject to change without notice
