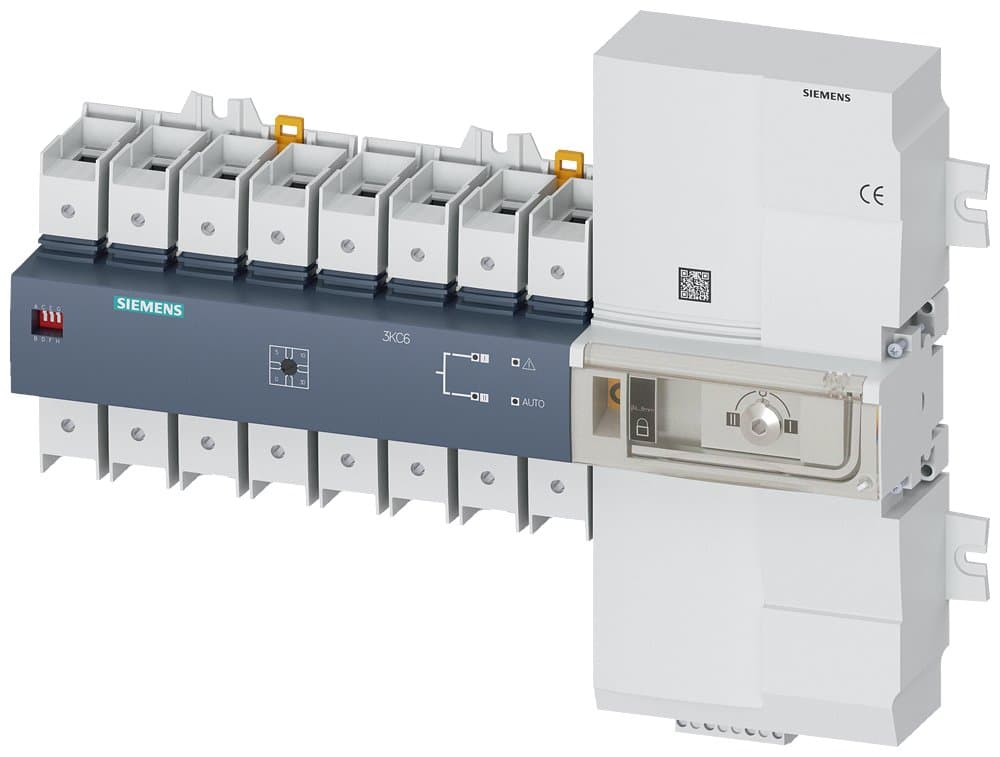

3KC6430-2TA20-0TA3
Product ID:110400
Updated: 2026/7/2
Key Features
- 1Ensure continuous power in computer rooms and production lines.
- 2Utilize a motorized mechanism for reliable switching.
- 3Install easily on standard 35mm mounting rails.
- 4Enhance safety with padlock locking for maintenance.
- 5Handle diverse tasks from emergency shutdowns to routine operations.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC6 PC-100A-4P Basic; PC-level; Rated Current 100A; 4P Automatic Transfer Switch; Equipped with excitation drive mechanism and integrated controller, additional front operation mechanism, position indication auxiliary contact option | Impact Withstand Voltage (kV) | 6 |
| Application Type | AC-33iB【AC Cage Motor and Resistive Load】 | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 100 |
| Specification | 3KC6【40-160A】 | Control Type | Basic |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC6430-2TA20-0TA3 |
Specifications may be subject to change without notice
