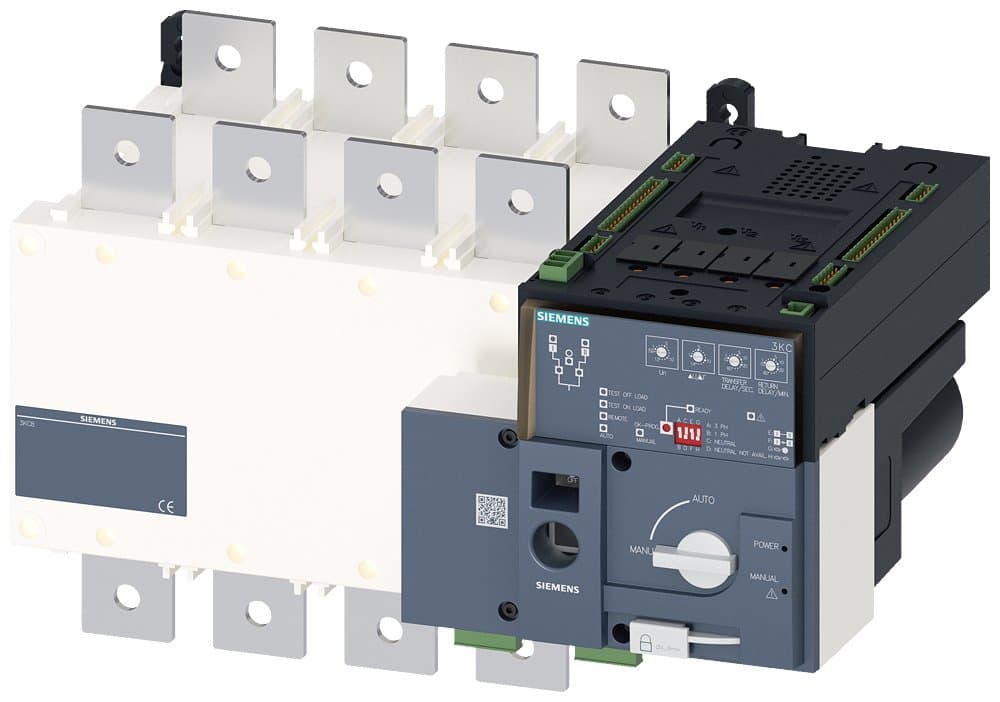

3KC8446-0EA22-0GA3
Product ID:207660
Updated: 2026/7/2
Key Features
- 1Handle high currents up to 630A with a 4-pole configuration.
- 2Ensure seamless power transitions via automatic transfer switch (ATSE) operation.
- 3Operate effortlessly with a reliable motorized mechanism for easy handling.
- 4Integrate efficiently into networks using included busbar connections.
- 5Meet environmental standards by complying with RoHS and WEEE directives.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC8 PC-630A-4P Basic Type; PC-level; Rated Current 630A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration with One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 630 |
| Specification | 3KC8 [250-3200A] | Control Type | Basic |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC8446-0EA22-0GA3 |
Specifications may be subject to change without notice
