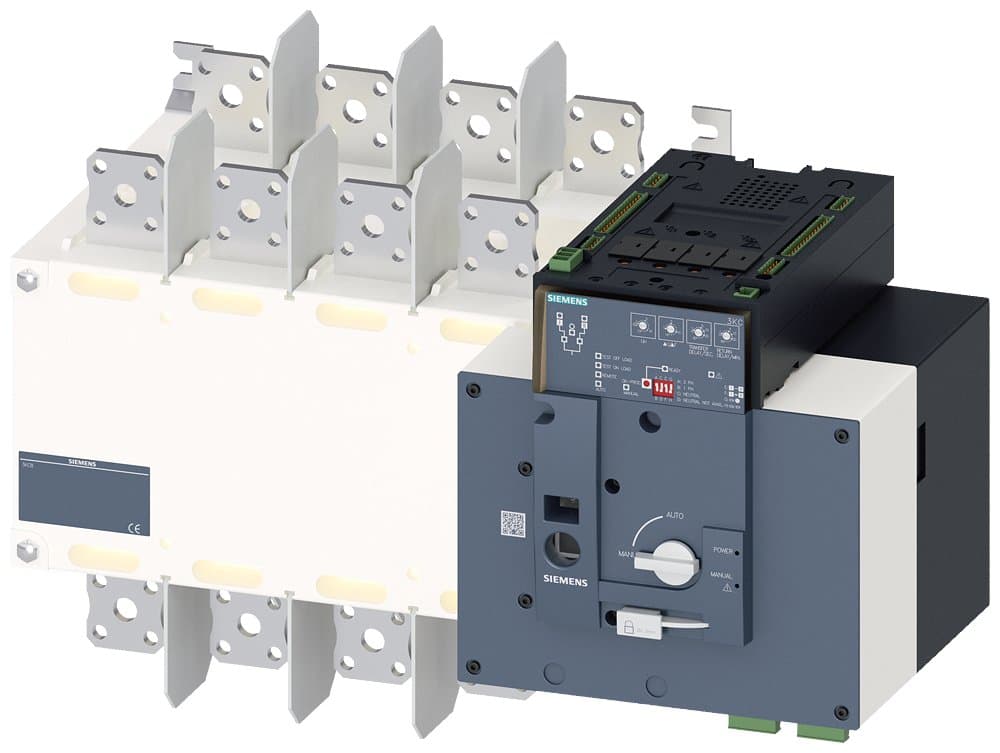

3KC8450-0FA22-0GA3
Product ID:205498
Updated: 2026/7/2
Key Features
- 1Automate power transfer between sources to ensure continuous operation.
- 2Handle high currents up to 1000 A with a robust 4-pole design.
- 3Operate across 415 V and 690 V AC for versatile application needs.
- 4Utilize a motorized mechanism with long handle for easy operation.
- 5Meet eClass and ETIM standards for guaranteed reliability and safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC8 PC-1000A-4P Basic Type; PC-level; Rated Current 1000A; 4P automatic transfer switch; Equipped with motor drive mechanism and integrated controller, additional front operation mechanism, standard configuration of one set of position indication auxiliary contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 1000 |
| Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC8450-0FA22-0GA3 |
Specifications may be subject to change without notice
