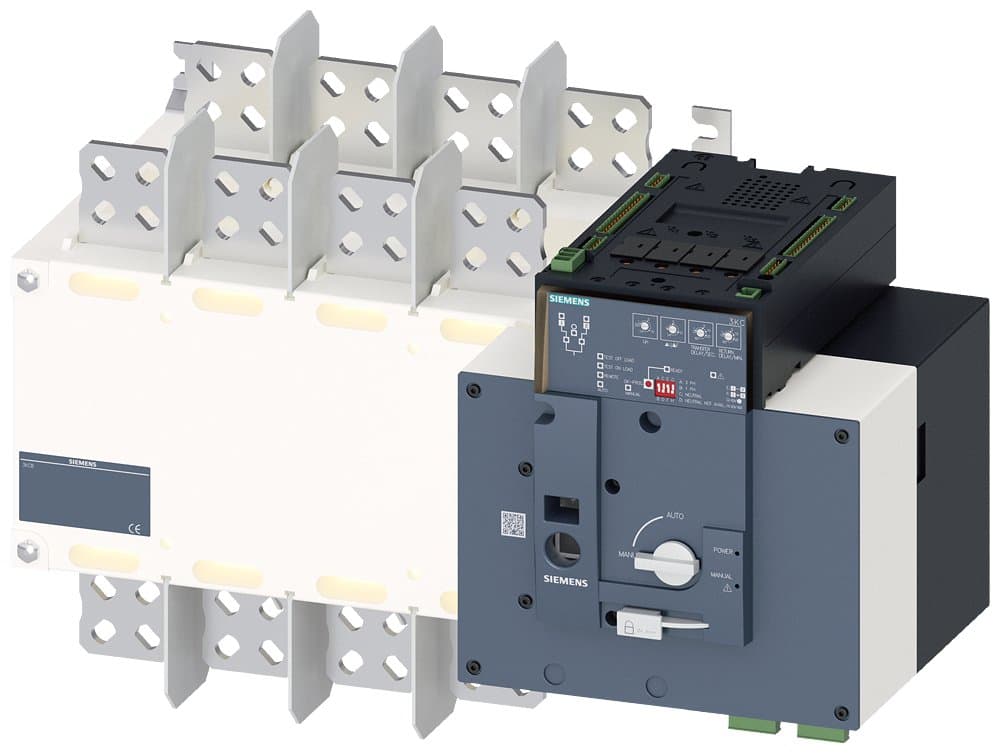

3KC8452-0GA22-0GA3
Product ID:185698
Updated: 2026/8/11
Key Features
- 1Automate power transfer seamlessly with an automatic switching mechanism.
- 2Handle high-power applications with a 1250 A current capacity.
- 3Ensure robust operation using a reliable 4-pole design.
- 4Control easily via a motorized operating mechanism.
- 5Meet RoHS and WEEE directives for environmental compliance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC8 PC-1250A-4P Basic Type; PC-level; Rated Current 1250A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of One Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 1250 |
| Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC8452-0GA22-0GA3 |
Specifications may be subject to change without notice
