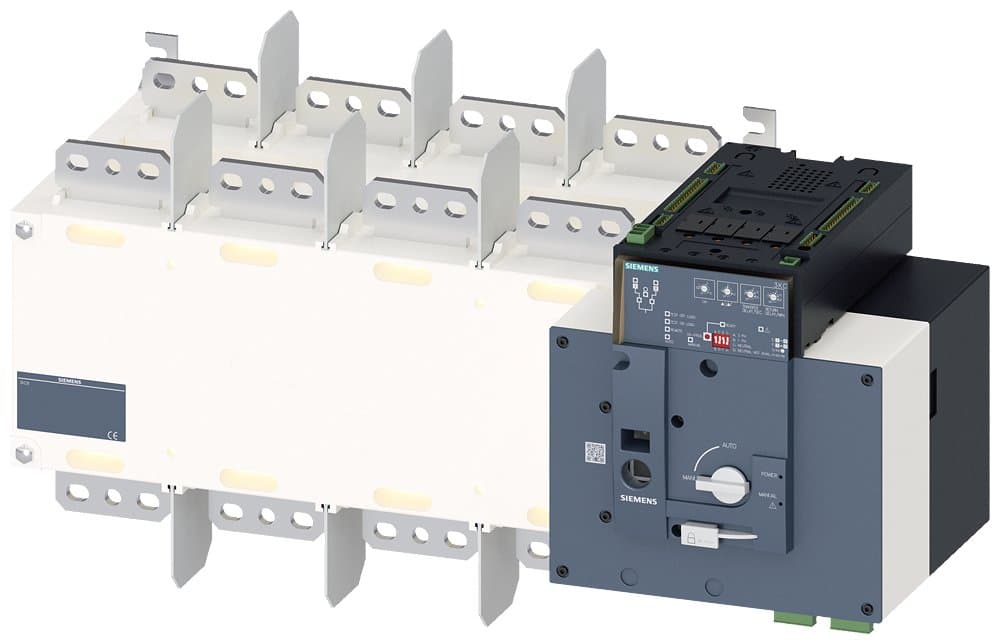

3KC8454-0HA22-0GA3
Product ID:124893
Updated: 2026/7/2
Key Features
- 1Ensure seamless power transfer with automatic operation.
- 2Handle high currents up to 1600 A for demanding applications.
- 3Control precisely using the motorized operating mechanism.
- 4Secure the unit with reliable screw mounting.
- 5Enhance system reliability with efficient busbar connections.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC8 PC-1600A-4P Basic Type; PC-level; Rated Current 1600A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of a Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 1600 |
| Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC8454-0HA22-0GA3 |
Specifications may be subject to change without notice
