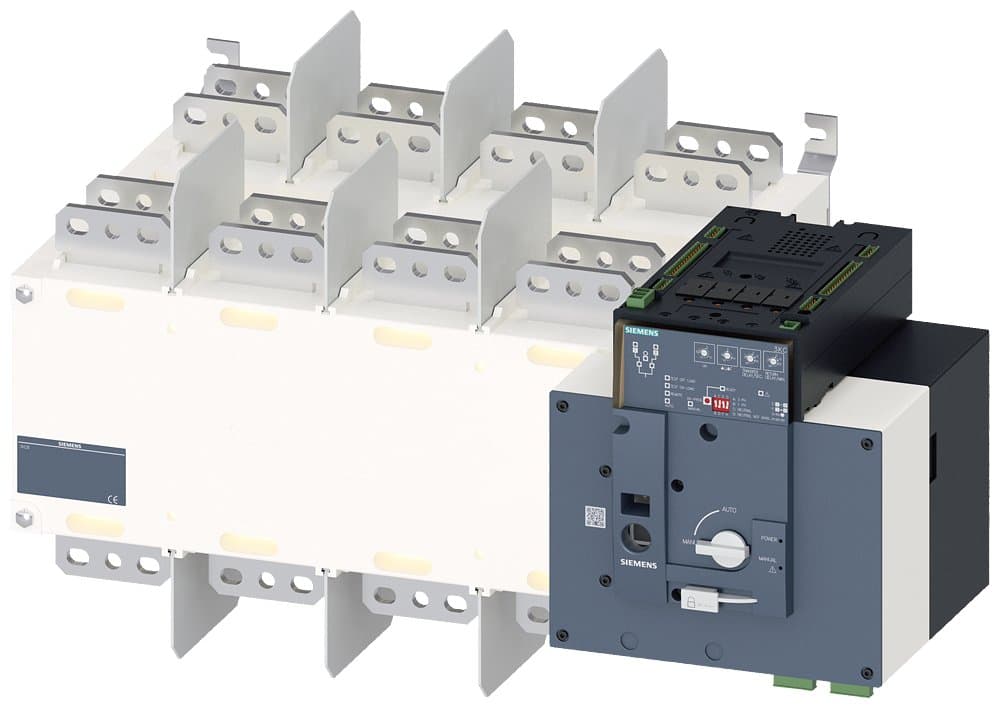

3KC8458-0JA22-0GA3
Product ID:178197
Updated: 2026/4/3
Key Features
- 1Automatically switch between power sources for continuous supply. 2、Handle high currents up to 2500 A with a robust 4-pole design. 3、Simplify installation via convenient screw mounting. 4、Ensure application reliability and safety with IEC 60947 compliance. 5、Benefit from a motorized mechanism for efficient operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Description | 3KC8 PC-2500A-4P Basic Type; PC-level; Rated Current 2500A; 4P Automatic Transfer Switch; Equipped with Motor Drive Mechanism and Integrated Controller, Additional Front Operation Mechanism, Standard Configuration of a Set of Position Indicating Auxiliary Contacts | Impact Withstand Voltage (kV) | 12 |
| Application Type | AC-33iB [AC Cage Motor and Resistive Load] | Other | Automatic Transfer Switch |
| System Voltage | 415VAC | Control Voltage | 230VAC |
| Number of Poles | 4 | In(A) | 2500 |
| Specification | 3KC8 [250-3200A] | Control Type | Basic Type |
| Type | PC-level | Lifecycle | Delivery Release (PM300) |
| Country of Origin | China | ECCN | N |
| AL | N | Model Number | 3KC8458-0JA22-0GA3 |
Specifications may be subject to change without notice
