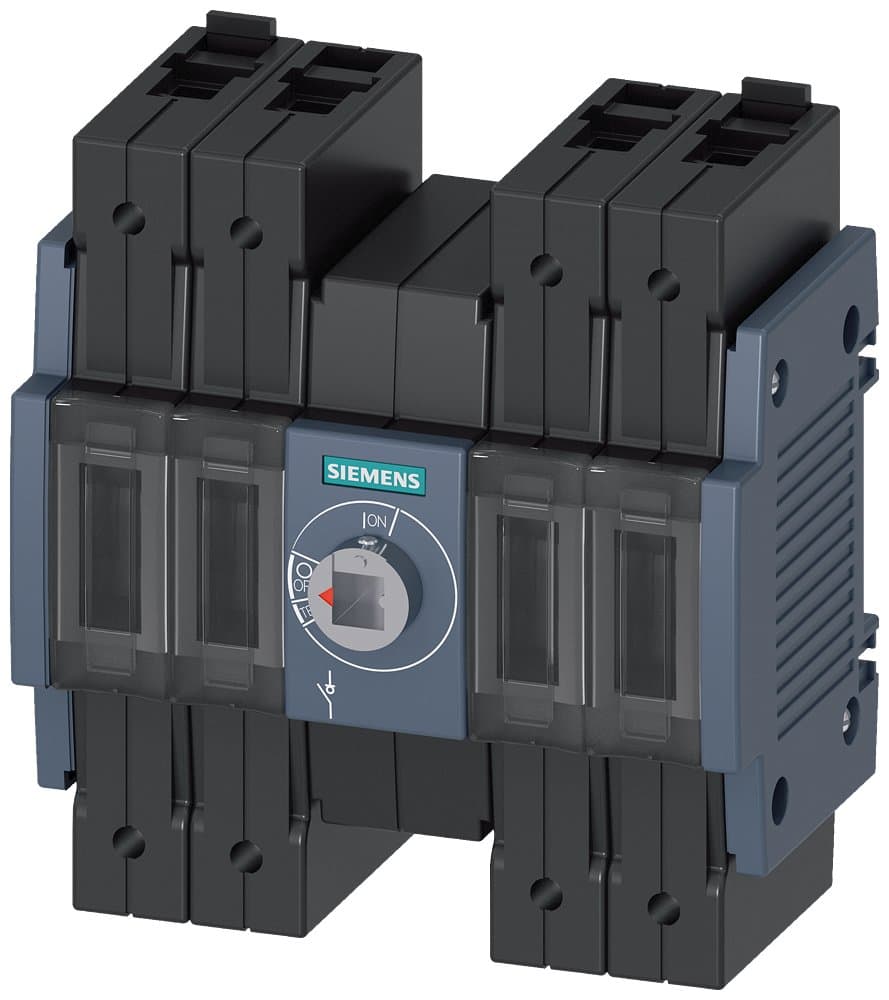

3KD1640-2ME20-0
Product ID:102017
Updated: 2026/4/3
Key Features
- 1Achieve precise control with a door-coupling rotary operating mechanism. 2、Enhance performance through integrated tolerance compensation. 3、Simplify installation with standard 75x75 mm dimensions and 8x8 mm shaft. 4、Receive a complete unit including a 55 mm handle for immediate use. 5、Ensure reliable mechanical operation in demanding industrial applications.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated current 16A, 4P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal, |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 16 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD1640-2ME20-0 |
Specifications may be subject to change without notice
