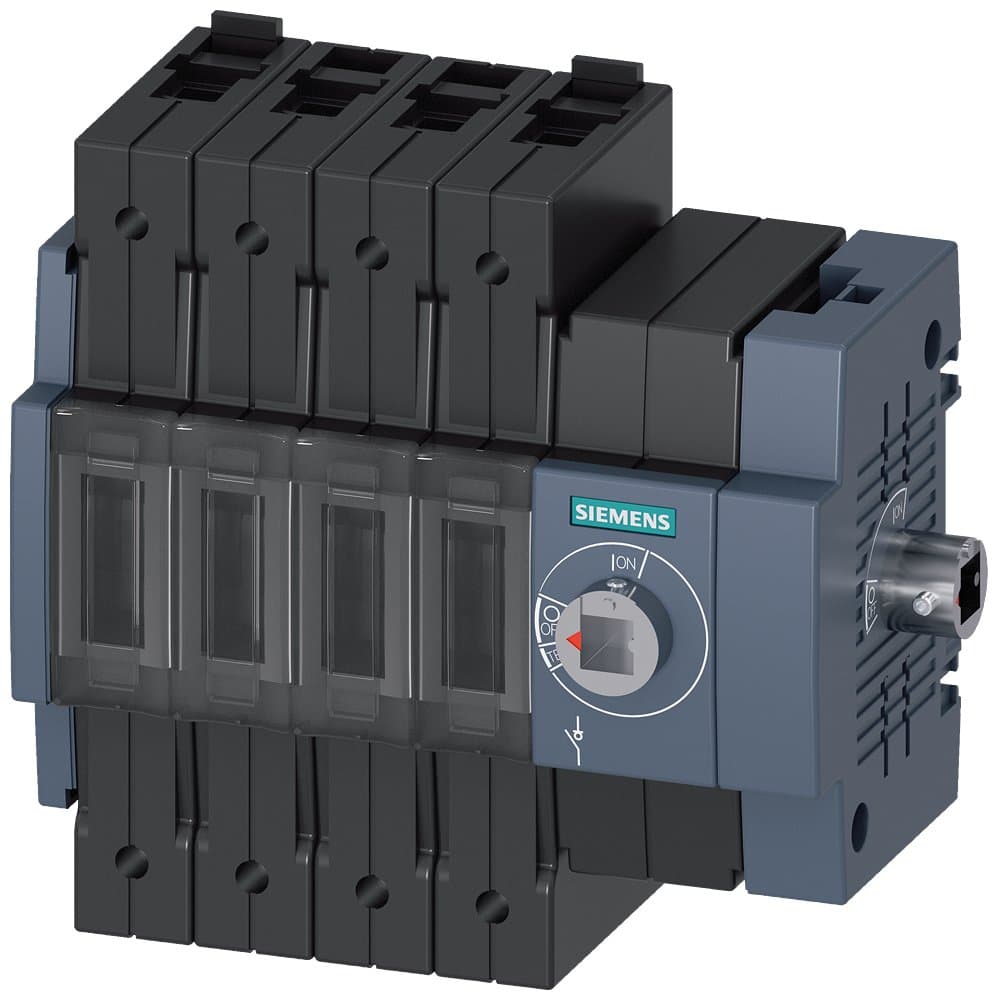

3KD2244-2ME40-0
Product ID:101327
Updated: 2026/7/2
Key Features
- 1Handle up to 32A for robust electrical control.
- 2Ensure reliable disconnection with a 4-pole lateral mechanism.
- 3Install easily with a basic, handle-free unit.
- 4Integrate seamlessly into right-side wall mount structures.
- 5Access global delivery for fast project completion.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 32A; 4P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mounting; Box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 32 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD2244-2ME40-0 |
Specifications may be subject to change without notice
