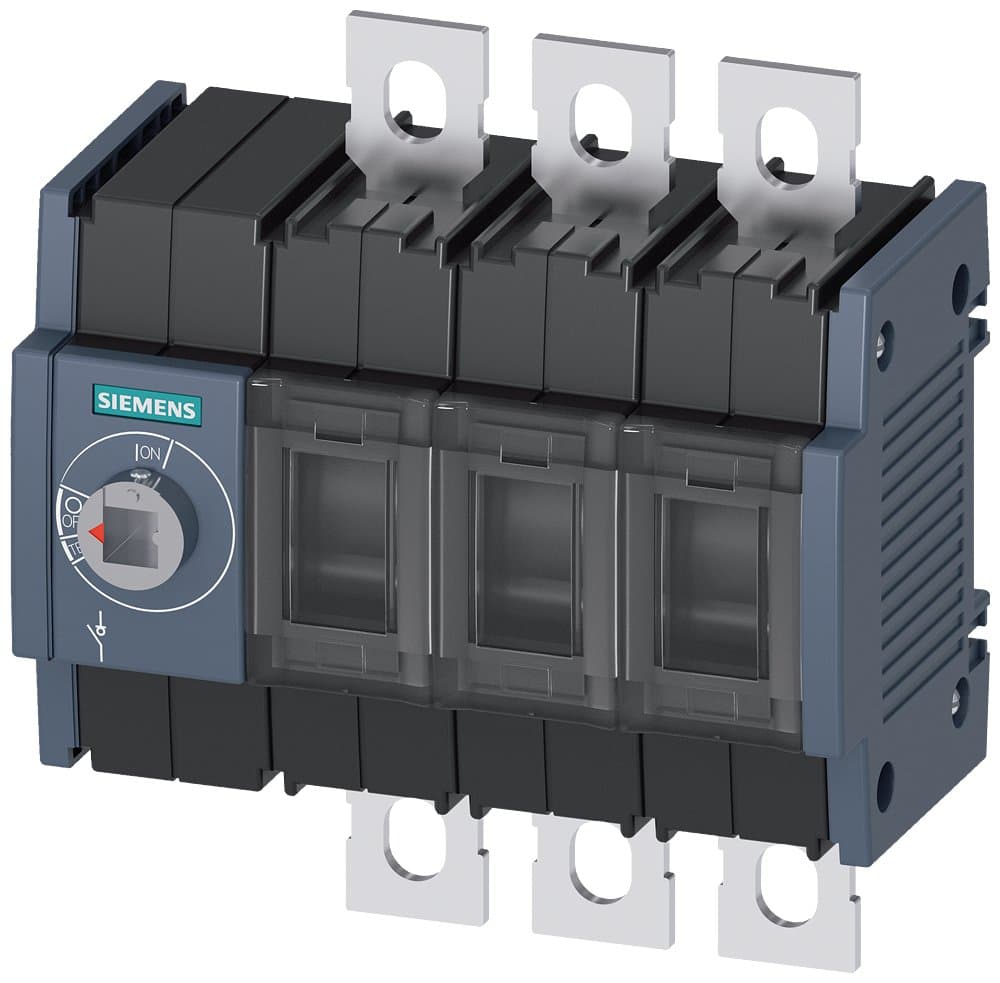

3KD2830-0NE10-0
Product ID:98527
Updated: 2026/4/3
Key Features
- 1Provide safe isolation in low-voltage circuits. 2、Feature a lockable mechanism for up to 3 padlocks. 3、Enable easy front operation for user convenience. 4、Handle applications requiring up to 80 A current. 5、Deliver trusted Siemens performance and safety standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 80A, 3P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, flat connection |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 80 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD2830-0NE10-0 |
Specifications may be subject to change without notice
