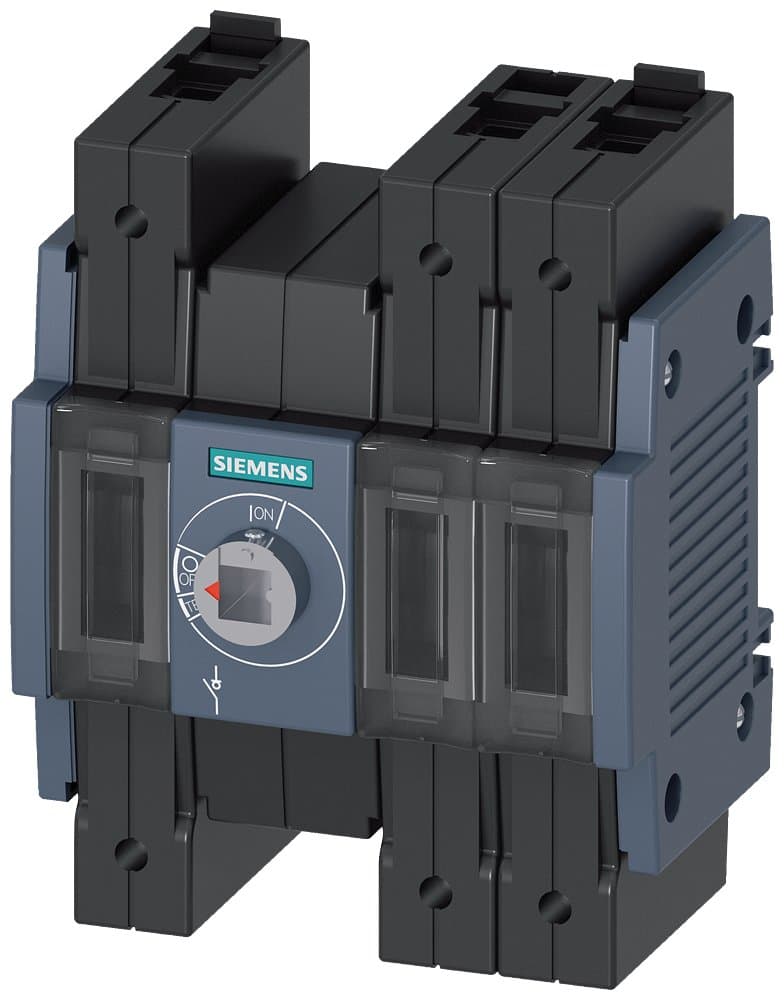

3KD2830-2ME20-0
Product ID:226797
Updated: 2026/4/3
Key Features
- 1Ensure precise 80A power isolation with a 3-pole center front drive. 2、Reduce downtime risk with a robust 55mm handle for durability. 3、Save panel space using the compact 75x75mm footprint. 4、Simplify installation with accessible box terminals. 5、Achieve long-term reliability in demanding industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 80A; 3P; Basic unit without handle, front operation mechanism located at the center of the switch; Box terminal |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Poles | 3P | In(A) | 80 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD2830-2ME20-0 |
Specifications may be subject to change without notice
