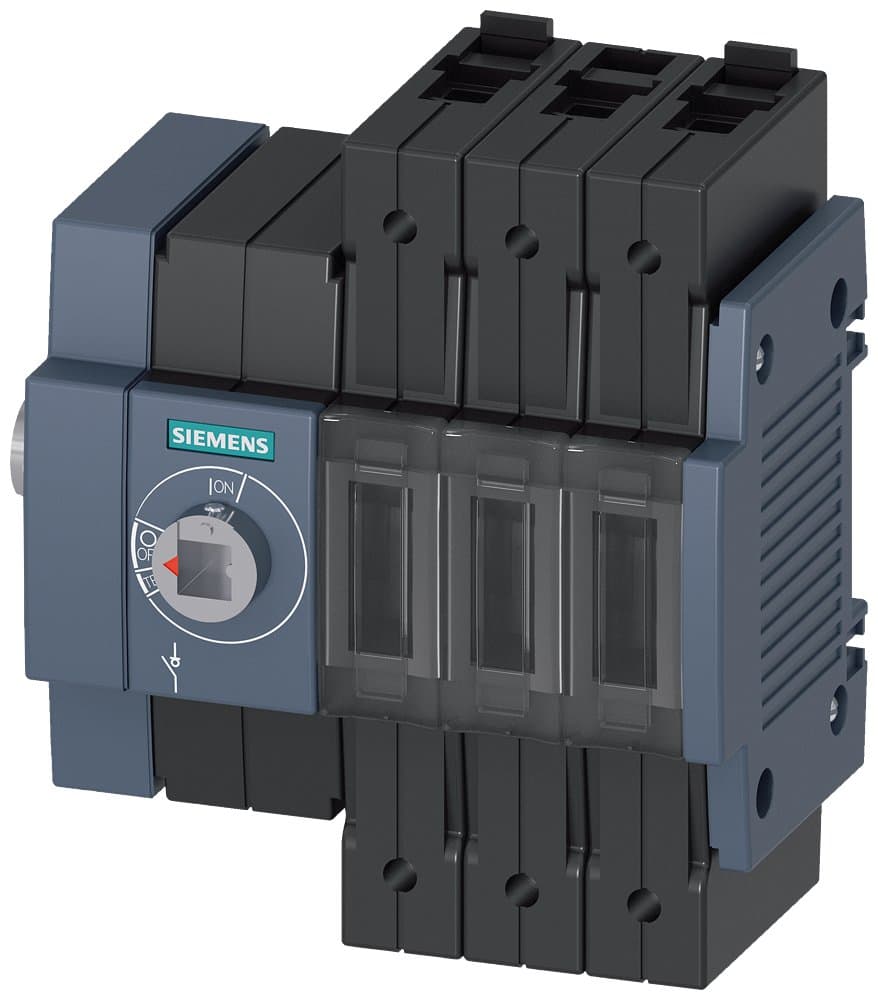

3KD2834-2ME10-0
Product ID:103279
Updated: 2026/4/3
Key Features
- 1Ensure safe and continuous operation under full 80A load. 2、Operate conveniently with a front-mounted switching mechanism. 3、Protect against harsh conditions with durable IP65-rated enclosure. 4、Install confidently across diverse electrical systems and panels. 5、Meet global safety standards including IEC 60947-3 and UL 508.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 80A; 3P; Basic Unit, Without Handle, Side Operation Mechanism on the Left Side of the Switch; Box Terminal |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Poles | 3P | In(A) | 80 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic Unit, Without Handle, Side Operation Mechanism on the Left Side of the Switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model | 3KD2834-2ME10-0 |
Specifications may be subject to change without notice
