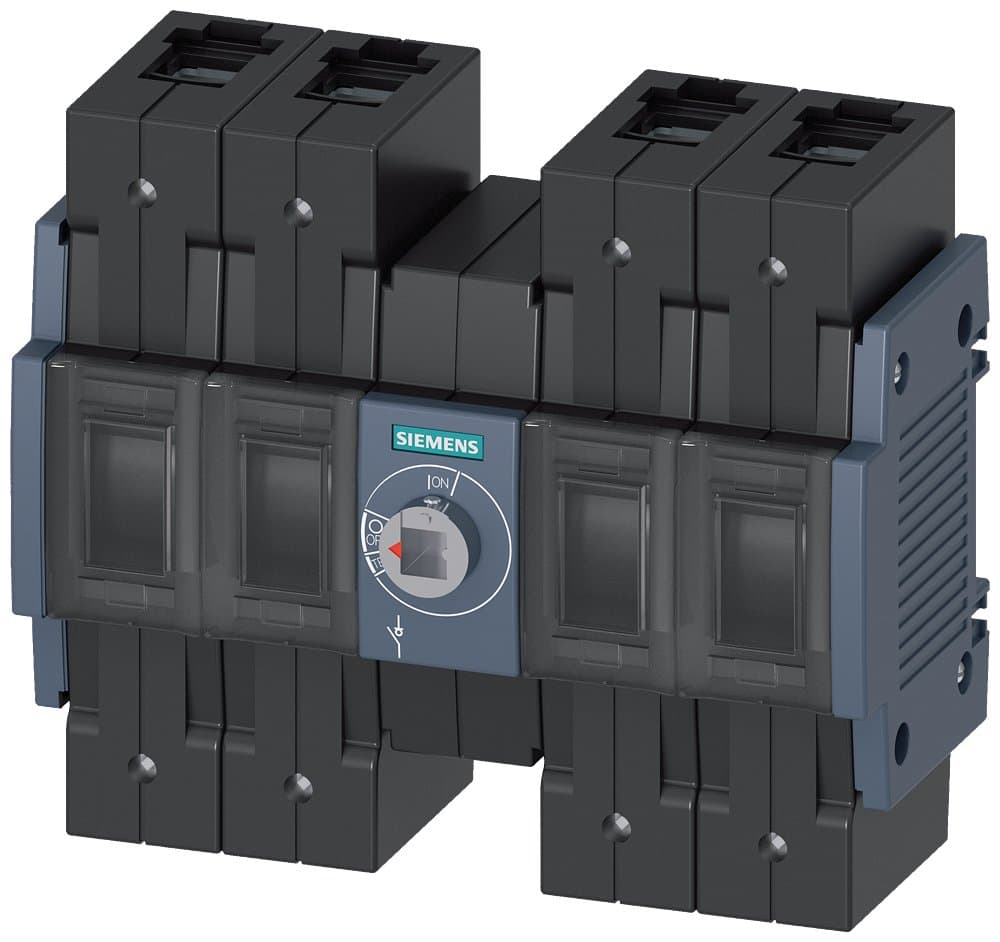

3KD2840-2NE20-0
Product ID:223400
Updated: 2026/6/17
Key Features
- 1Handle up to 80A current for reliable high-power switching.
- 2Secure operation with a robust 4-pole front drive mechanism.
- 3Achieve 15,000 mechanical and 1,500 electrical cycles for longevity.
- 4Connect various conductors like copper busbars and solid wires.
- 5Meet global standards with IP20 protection and RoHS compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 80A, 4P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 80 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD2840-2NE20-0 |
Specifications may be subject to change without notice
