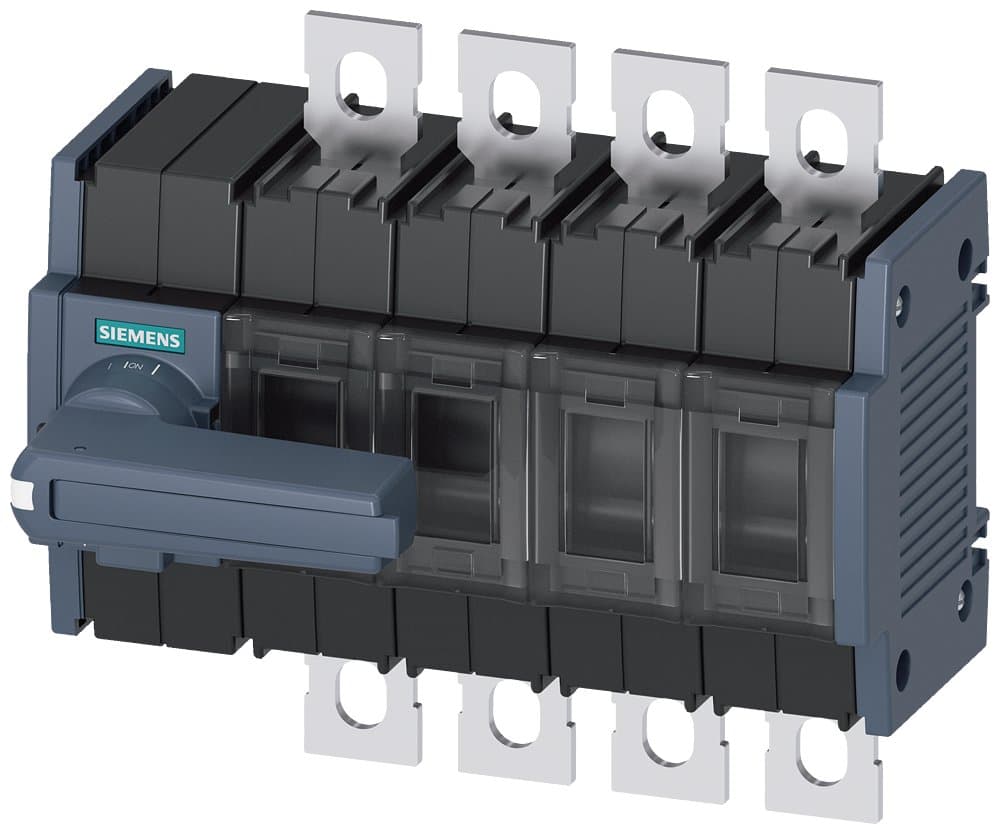

3KD2842-0NE10-0
Product ID:227104
Updated: 2026/4/3
Key Features
- 1Handle up to 80A for reliable power distribution. 2、Utilize a compact Size 2 design for space-constrained panels. 3、Operate easily with a left-hand front drive mechanism. 4、Ensure safe connections with included phase barriers. 5、Meet eClass 5.1, eClass 6, and ETIM 7 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 2; Rated current 80A, 4P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mounting, flat connection, |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 80 |
| Specification | 3KD_Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD2842-0NE10-0 |
Specifications may be subject to change without notice
