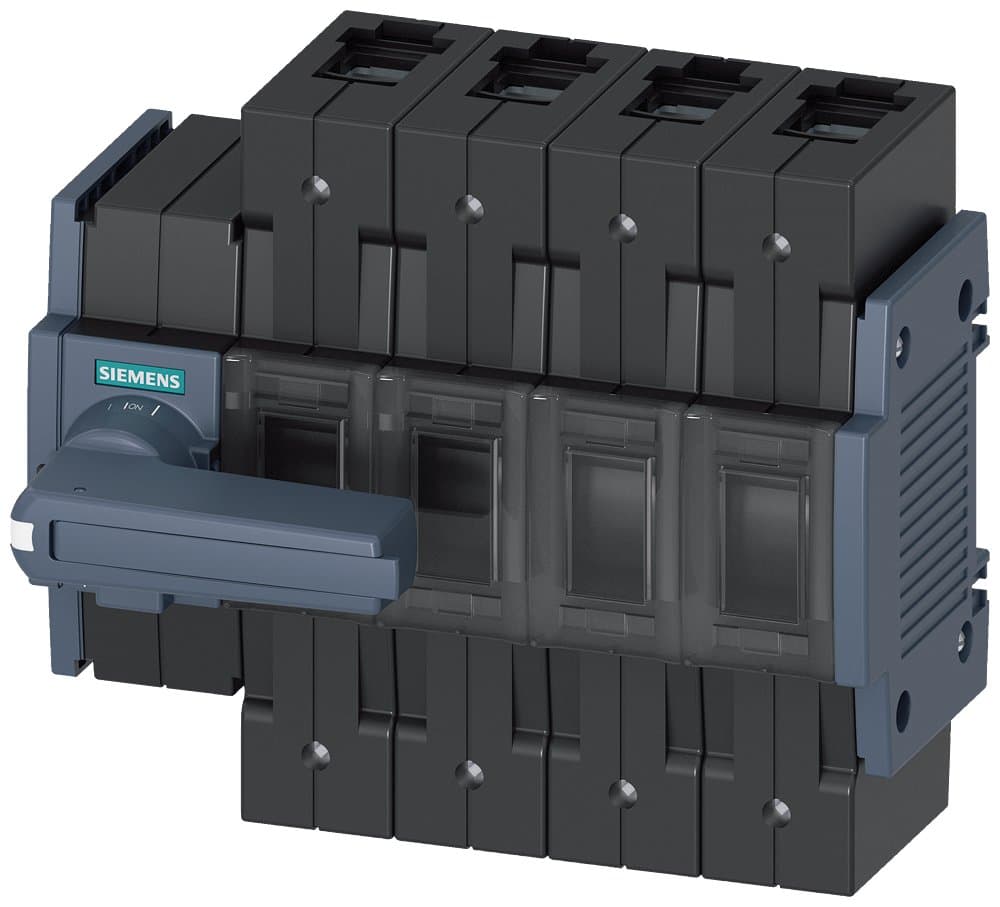

3KD2842-2NE10-0
Product ID:177344
Updated: 2026/4/5
Key Features
- 1Deliver reliable 80 A current rating for stable operation. 2、Access the front operating mechanism for easy installation. 3、Install the complete unit with direct drive for seamless functionality. 4、Connect securely with the durable gray box terminal. 5、Ensure longevity in diverse electrical installations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 80A, 4P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, box terminal, |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 80 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD2842-2NE10-0 |
Specifications may be subject to change without notice
