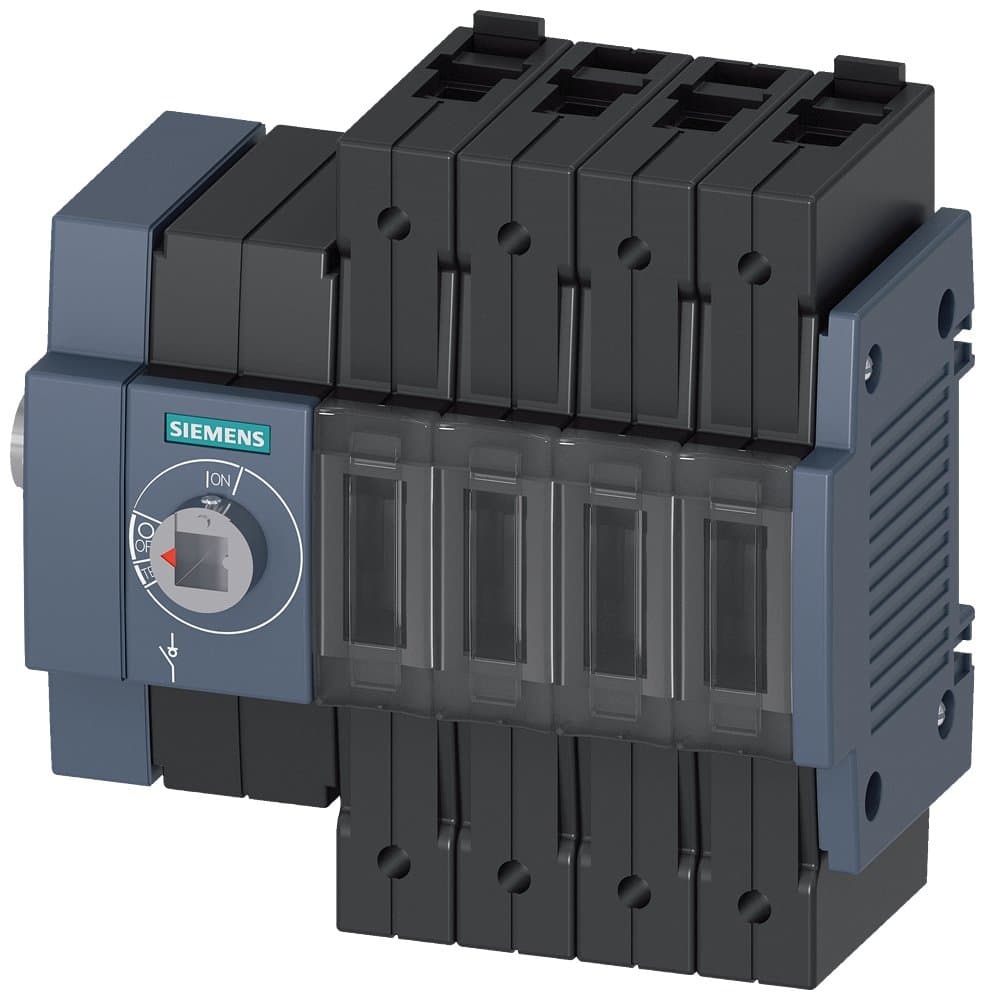

3KD2844-2ME10-0
Product ID:104893
Updated: 2026/7/2
Key Features
- 1Engineer high-precision operation for reliability.
- 2Standardize tolerance compensation for optimal performance.
- 3Compact size (75x75 mm) with an 8x8 mm shaft.
- 4Complete unit with a 55 mm handle for easy installation.
- 5Design with safety to ensure secure operation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 80A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 80 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD2844-2ME10-0 |
Specifications may be subject to change without notice
