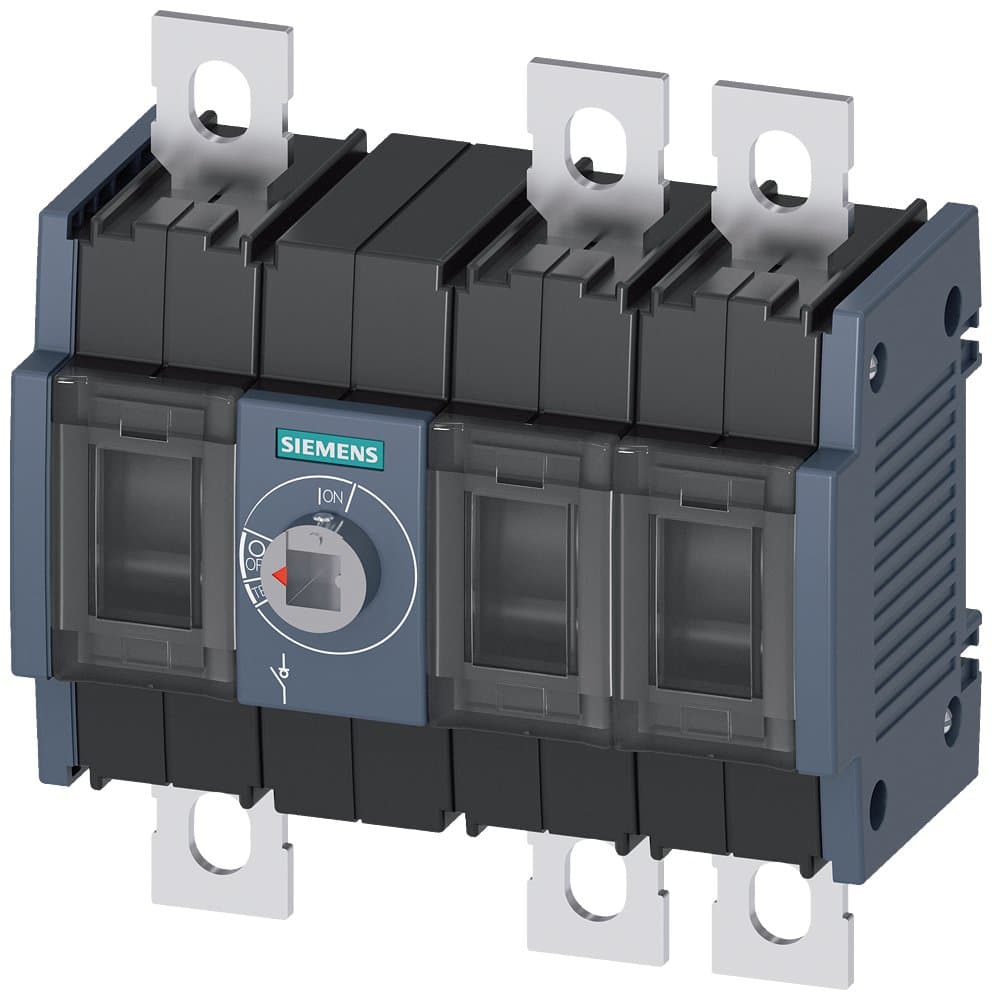

3KD3030-0NE20-0
Product ID:111527
Updated: 2026/4/3
Key Features
- 1Ensure precise tolerance compensation for reliable electrical system operation. 2、Utilize a compact 75x75 mm design ideal for space-limited installations. 3、Operate easily with a robust 55 mm handle built for heavy-duty use. 4、Mount flexibly with center-hole or four-hole configuration compatibility. 5、Rely on durable, high-quality materials for long-lasting performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, flat connection |
| Mounting Type | Surface Mounting | Terminal Type | Flat Connection |
| Number of Poles | 3P | In(A) | 100 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3030-0NE20-0 |
Specifications may be subject to change without notice
