Key Features
- 1Handle high currents up to 100A with a reliable 3-pole configuration.
- 2Save panel space with a compact 75x75 mm footprint.
- 3Ensure precise switching via built-in tolerance compensation.
- 4Operate easily from the front with a manual drive mechanism.
- 5Rely on durable construction for long-lasting electrical performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 3P, basic unit without handle, front operation mechanism located at the center of the switch, surface mounting, box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 3P | In(A) | 100 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism located at the center of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |

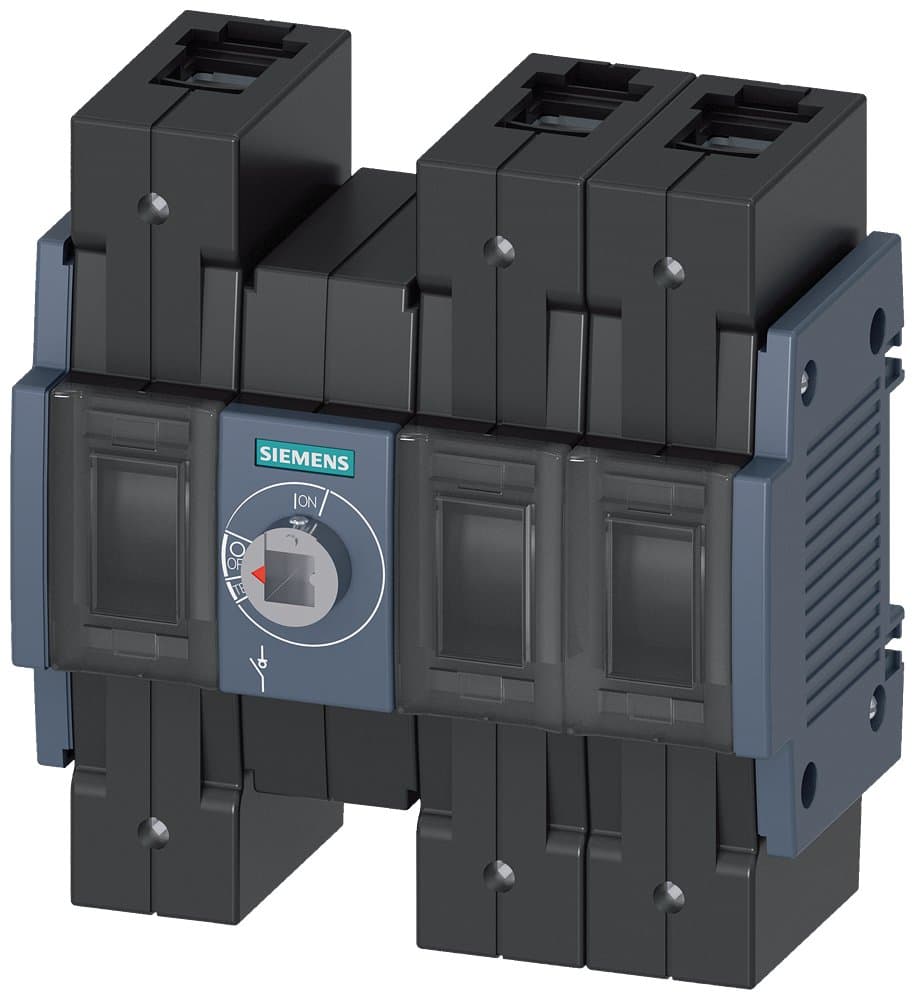

| Model Number | 3KD3030-2NE20-0 |
Specifications may be subject to change without notice
