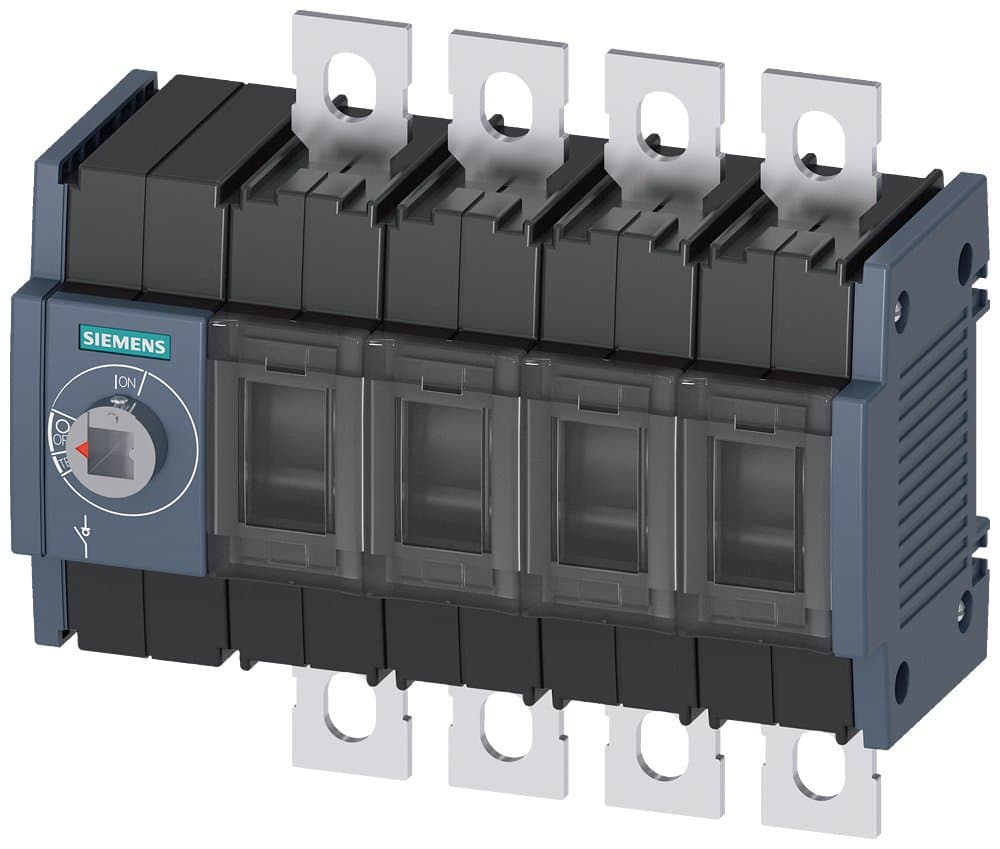

3KD3040-0NE10-0
Product ID:103999
Updated: 2026/7/2
Key Features
- 1Protect users from electric shock with permanent switch-on and switch-off under load.
- 2Install for floor mounting, standard rail, or front panel door mounting.
- 3Support rated currents up to 63 A and short-circuit currents up to 6 kA.
- 4Meet IEC 60947-3 and UL 508 standards for reliability and safety.
- 5Design with IP65 protection for harsh environments and long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mount, flat connection |
| Mounting Type | Surface Mount | Terminal Type | Flat Connection |
| Number of Poles | 4P | In(A) | 100 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3040-0NE10-0 |
Specifications may be subject to change without notice
