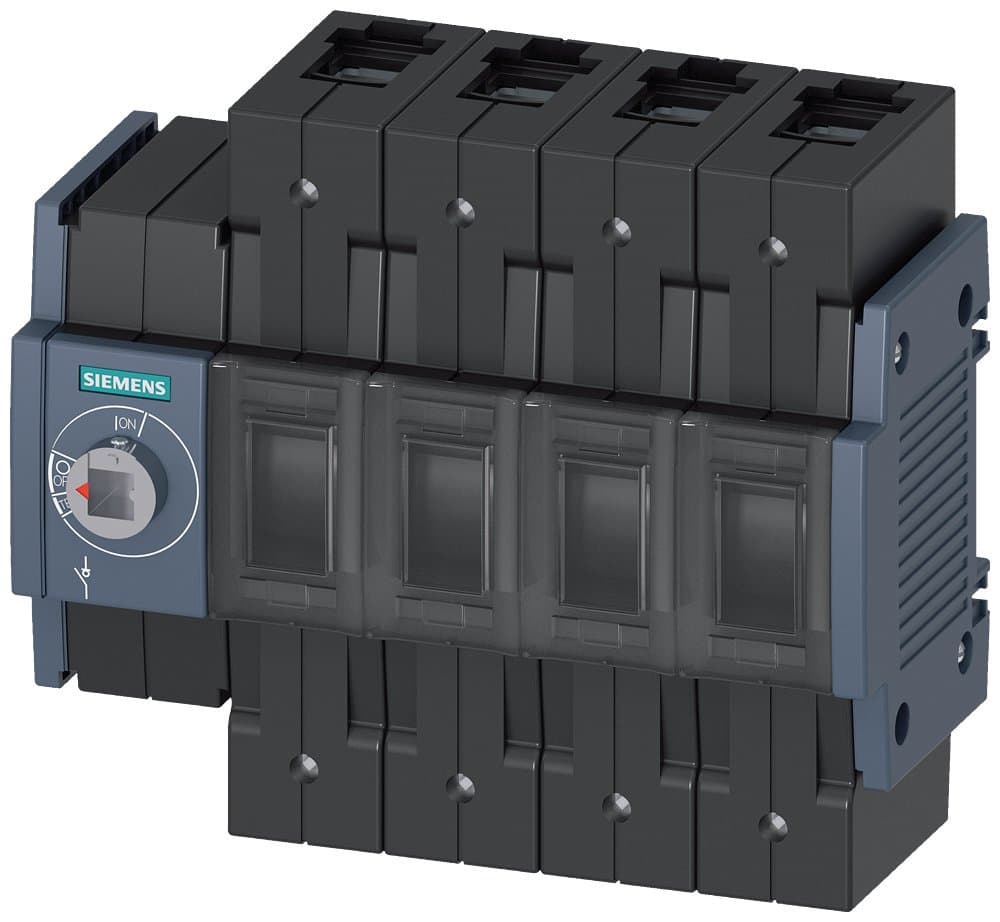

3KD3040-2NE10-0
Product ID:222415
Updated: 2026/6/18
Key Features
- 1Protect users from electric shock with permanent load switching.
- 2Install flexibly via floor, rail, or front panel door mounting.
- 3Support heavy-duty applications with rated currents up to 2000 A.
- 4Ensure long-lasting performance with high-quality materials.
- 5Meet IEC 60947-3 and UL 508 standards for assured compliance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 100A, 4P, basic unit without handle, front operation mechanism on the left side of the switch, surface mounting, box terminal, |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 100 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, front operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3040-2NE10-0 |
Specifications may be subject to change without notice
