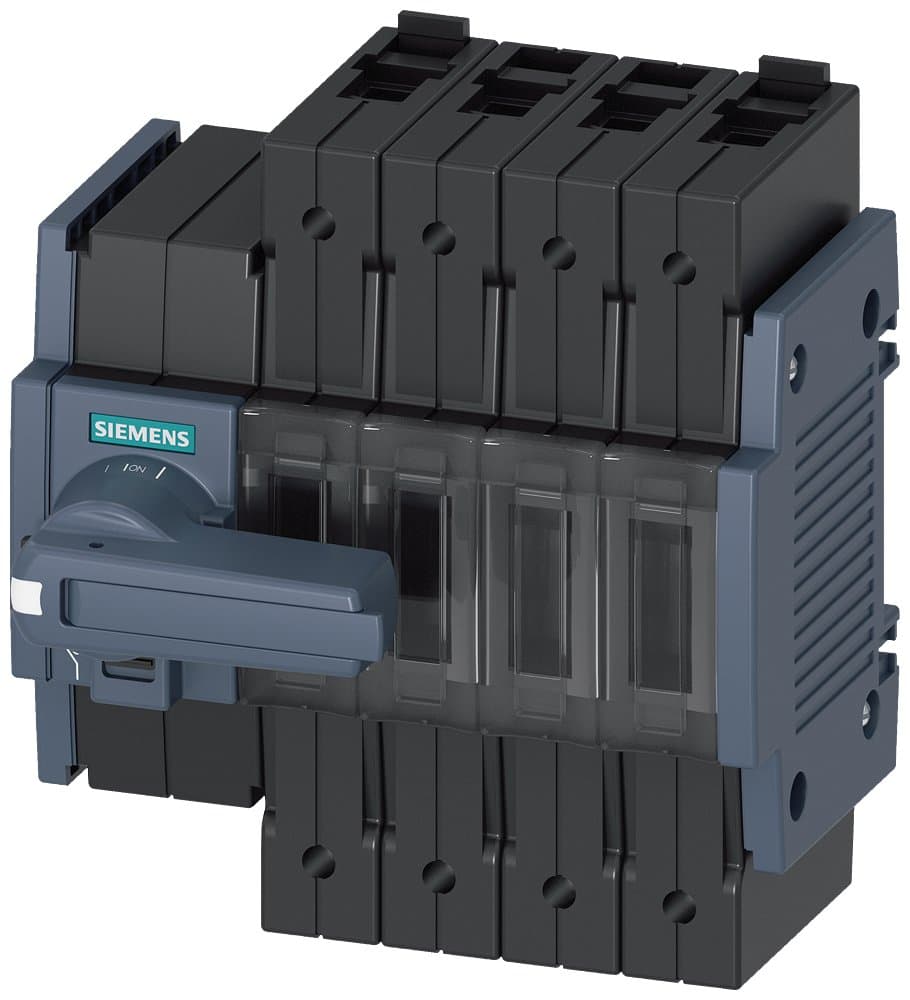

3KD3042-2ME10-0
Product ID:195126
Updated: 2026/7/3
Key Features
- 1Handle 100A current for reliable power distribution.
- 2Construct with robust materials for long-lasting performance.
- 3Operate easily with a front-drive mechanism.
- 4Enhance safety with permanent switch-on/off capabilities.
- 5Mount versatilely on floor, rail, or front.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD_Specification 1; Rated Current 100A; 4P; Kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch; Box Terminal |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 100 |
| Specification | 3KD_Specification 1 [16-100A] | Switch Type | Kit type, front operation, with direct front operation mechanism, grey handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3042-2ME10-0 |
Specifications may be subject to change without notice
