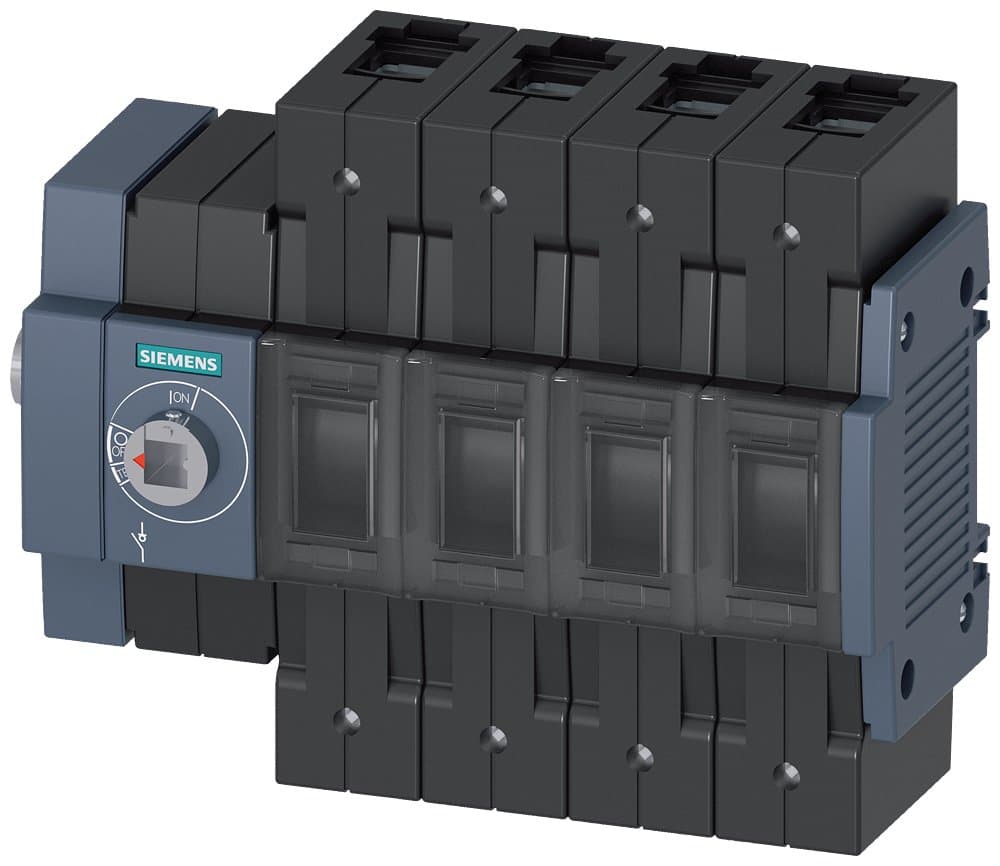

3KD3044-2NE10-0
Product ID:98873
Updated: 2026/4/3
Key Features
- 1Ensure precise operation with a high-quality door-coupling rotary mechanism. 2、Enable reliable emergency switching-off without tolerance compensation. 3、Save panel space with a compact 75x75 mm size and 8x8 mm shaft. 4、Deploy confidently across various industrial applications requiring robust door-coupling. 5、Simplify installation using the complete unit with handle and terminal box.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 100A; 4P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 4P | In(A) | 100 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3044-2NE10-0 |
Specifications may be subject to change without notice
