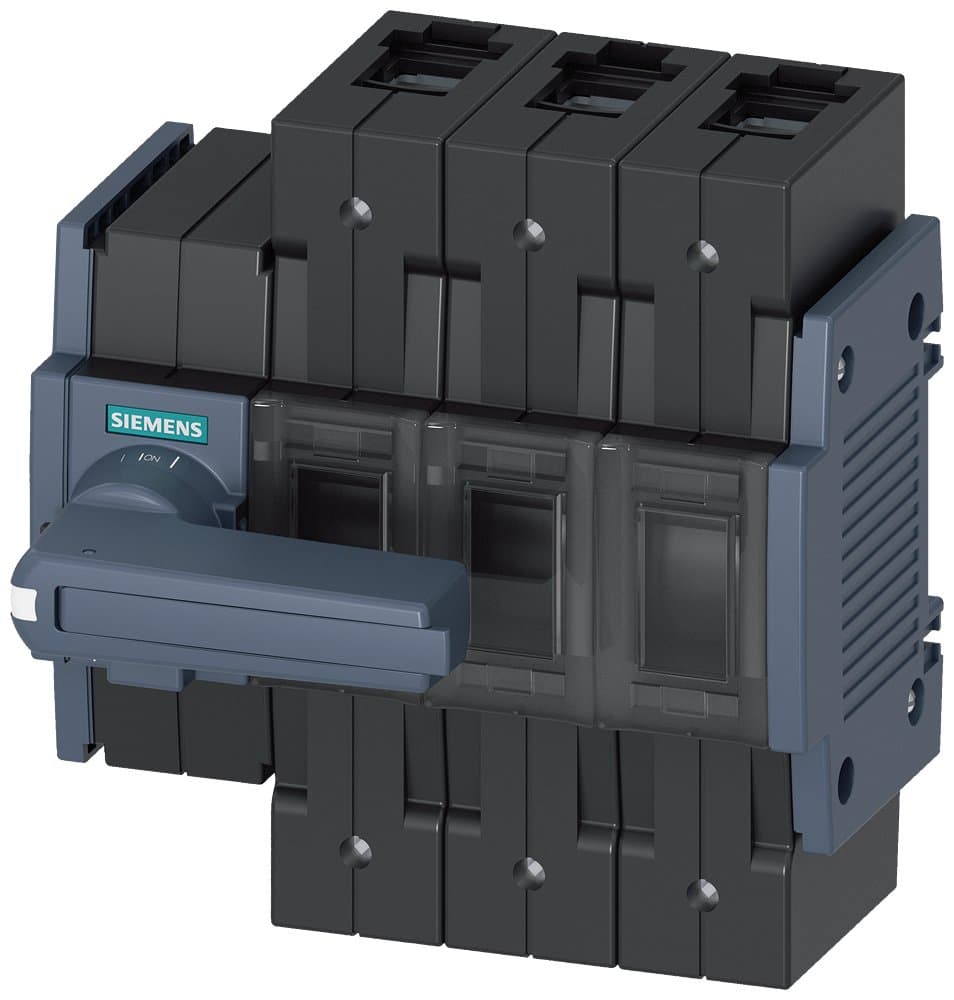

3KD3232-2NE10-0
Product ID:100053
Updated: 2026/7/7
Key Features
- 1Handle 125 A loads reliably with a 3-pole configuration.
- 2Access and control easily via the front operating mechanism.
- 3Protect users by switching on and off safely under load.
- 4Mount flexibly on floors, rails, or panel doors.
- 5Ensure compliance with DIN VDE and UL 508 safety standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated current 125A, 3P, kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch, surface mount, box terminal, |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 3P | In(A) | 125 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Kit type, front operation, with direct front operation mechanism, gray handle, operating mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3232-2NE10-0 |
Specifications may be subject to change without notice
