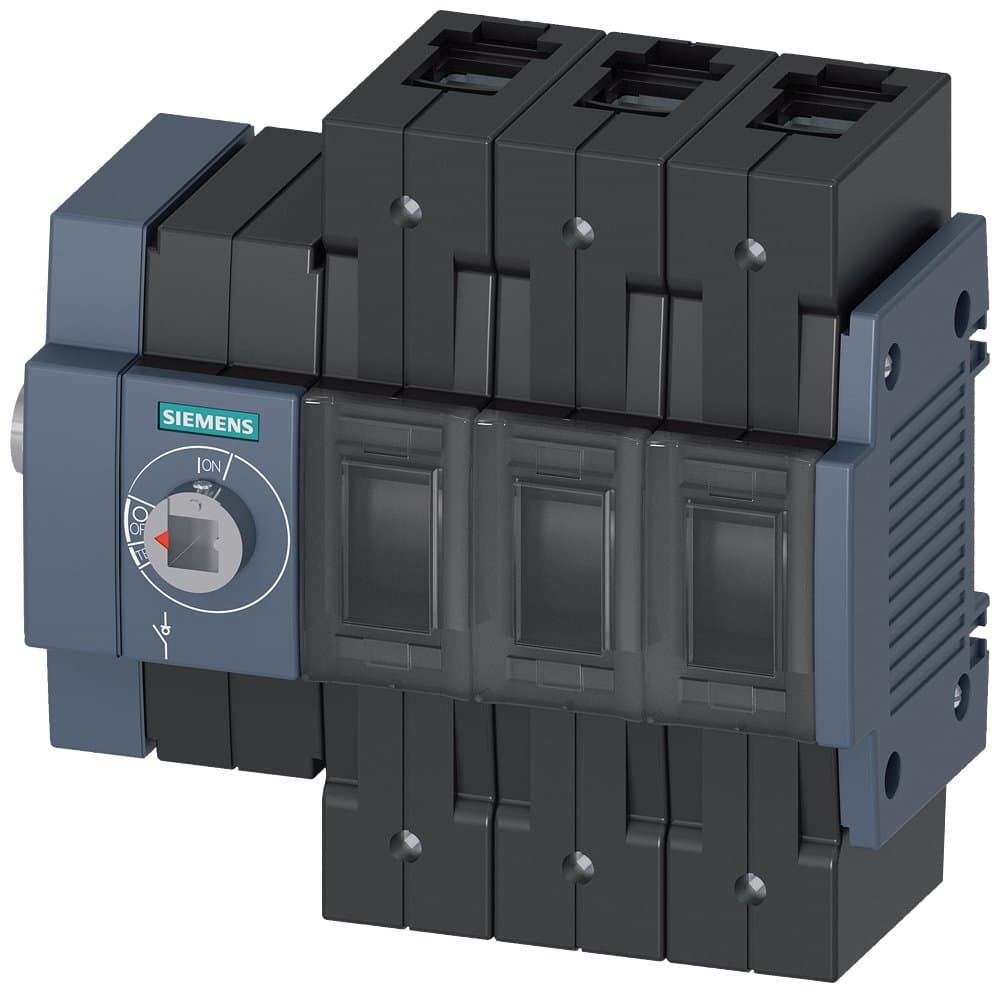

3KD3234-2NE10-0
Product ID:225681
Updated: 2026/7/9
Key Features
- 1Protect users from electric shock with permanent on/off load switching.
- 2Install flexibly for floor, rail, or front mounting configurations.
- 3Support rated currents up to 2000 A for diverse industrial uses.
- 4Meet IEC 60947-3 and UL 508 standards for reliability.
- 5Withstand harsh environments with durable construction materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 3P; Basic unit without handle, side operation mechanism on the left side of the switch; Surface mounting; Box terminal |
| Mounting Type | Surface Mounting | Terminal Type | Box Terminal |
| Number of Poles | 3P | In(A) | 125 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the left side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3234-2NE10-0 |
Specifications may be subject to change without notice
