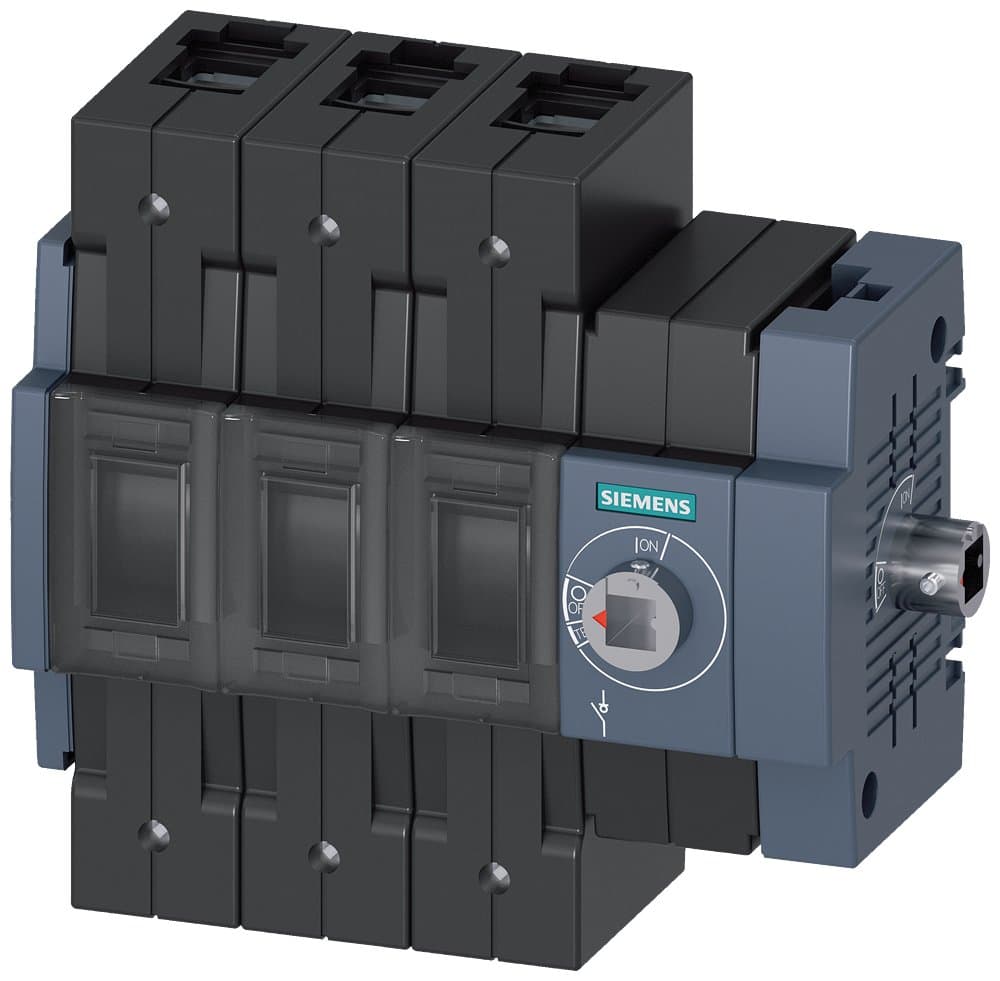

3KD3234-2NE40-0
Product ID:108148
Updated: 2026/4/3
Key Features
- 1Isolate high-power circuits reliably with a 125 A capacity. 2、Operate efficiently using the 3-pole lateral mechanism. 3、Integrate seamlessly into motor drive applications. 4、Save panel space with a compact 75x75 mm footprint. 5、Ensure precise alignment with tolerance compensation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| DC Insulation Voltage (V) | 220VDC/440VDC/1000VDC | AC Rated Voltage (V) | 690 |
| Insulation Voltage (V) | 1000 | Description | 3KD Specification 2; Rated Current 125A; 3P; Basic unit without handle, side operation mechanism on the right side of the switch; Surface mount; Box terminal |
| Mounting Type | Surface Mount | Terminal Type | Box Terminal |
| Number of Poles | 3P | In(A) | 125 |
| Specification | 3KD Specification 2 [80-125A] | Switch Type | Basic unit without handle, side operation mechanism on the right side of the switch |
| Lifecycle | Delivery Release (PM300) | Country of Origin | China |
| ECCN | N | AL | N |
| Model Number | 3KD3234-2NE40-0 |
Specifications may be subject to change without notice
